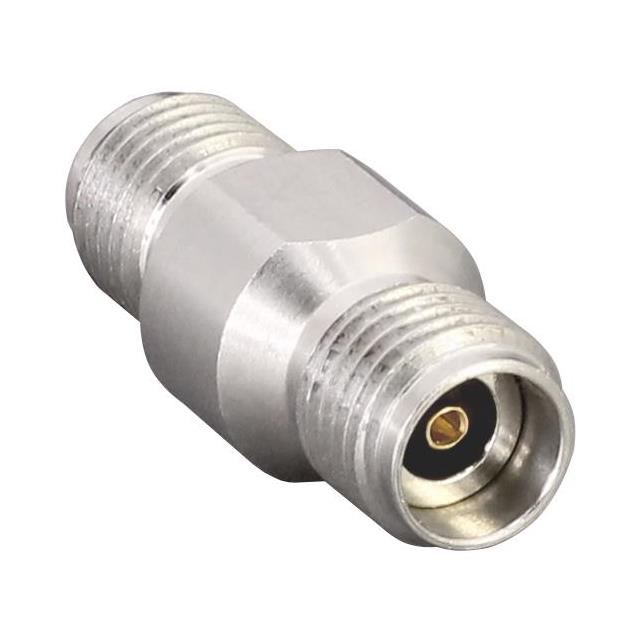

ADP-2.92F-2.92F

Active

TE Connectivity Linx

2.92 MM JACK (FEMALE SOCKET) TO

Search across all available documentation for this part.

Active

TE Connectivity Linx

2.92 MM JACK (FEMALE SOCKET) TO

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector 2.92mm (OS-2.9) Jack, Female Socket To 2.92mm (OS-2.9) Jack, Female Socket 50 Ohms

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	ADP-2.92F-2.92F	ADP-2.92 Series

Adapter Series [Max]	2.92 mm	2.92 mm
Adapter Series [Min]	2.92 mm	2.92 mm
Adapter Type	Jack to Jack	Plug to Plug, Jack to Jack
Body Material	Stainless Steel	Stainless Steel
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Center Gender	Female to Female	Male to Male, Female to Female
Conversion Type	Same Series	Same Series
Convert From (Adapter End)	2.92 mm	2.92 mm
Convert From (Adapter End)	OS-2.9, Jack, Female Socket	OS-2.9, Jack, Female Socket
Convert To (Adapter End)	2.92 mm	2.92 mm
Convert To (Adapter End)	OS-2.9 Jack, Female Socket	2.92mm (OS-2.9) Plug, Male Pin, OS-2.9 Jack, Female Socket
Frequency - Max [Max]	40 GHz	40 GHz
Impedance	50 Ohms	50 Ohms
Mating Cycles	500	500
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Style	Straight	Straight

2.92 MM PLUG (MALE PIN) TO 2.92

Part	Center Contact Plating	Body Material	Mating Cycles	Center Contact Material	Style	Conversion Type	Frequency - Max [Max]	Center Gender	Convert From (Adapter End)	Convert To (Adapter End)	Mounting Type	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Adapter Type	Adapter Series [Max]	Adapter Series [Min]	Convert From (Adapter End)	Convert To (Adapter End)
TE Connectivity Linx ADP-2.92M-2.92M	Gold	Stainless Steel	500	Beryllium Copper	Straight	Same Series	40 GHz	Male to Male	2.92 mm	2.92mm (OS-2.9) Plug, Male Pin	Free Hanging (In-Line)	50 Ohms	-40 °C	105 ░C	Plug to Plug	2.92 mm	2.92 mm
TE Connectivity Linx ADP-2.92F-2.92F	Gold	Stainless Steel	500	Beryllium Copper	Straight	Same Series	40 GHz	Female to Female	2.92 mm	OS-2.9 Jack, Female Socket	Free Hanging (In-Line)	50 Ohms	-40 °C	105 ░C	Jack to Jack	2.92 mm	2.92 mm	Jack, Female Socket, OS-2.9	2.92 mm
