S-1333B27-A4T2U3

Active

ABLIC Inc.

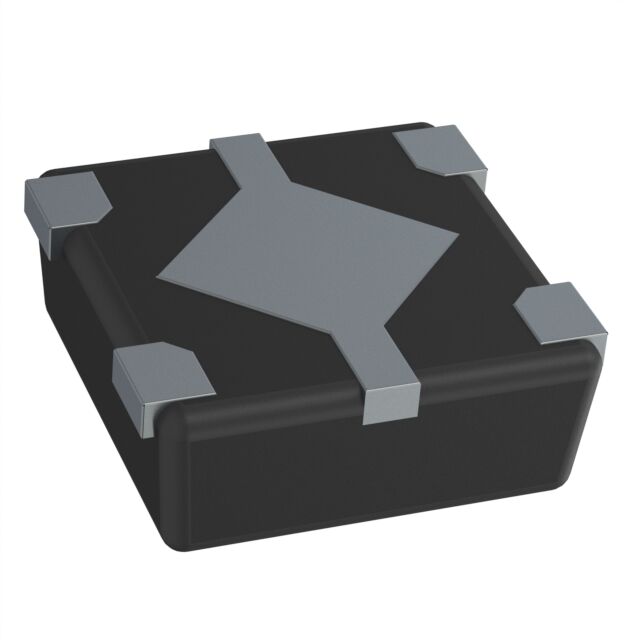

IC REG LIN 2.7V 300MA HSNT-4-B

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

S-1333B27-A4T2U3

Active

ABLIC Inc.

IC REG LIN 2.7V 300MA HSNT-4-B

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	10000	$ 0.48

Description

General part information

S-1333 Series

Linear Voltage Regulator IC Positive Fixed 1 Output 300mA HSNT-4-B

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	S-1333B27-A4T2U3	S-1333 Series

Control Features	Enable	Enable
Current - Output	300 mA	225 - 300 mA
Current - Quiescent (Iq)	1 µA	1 µA
Current - Supply (Max) [Max]	38 µA	38 µA
Mounting Type	Surface Mount	Surface Mount
Number of Regulators	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output Configuration	Positive	Positive
Output Type	1.81 mOhm	1.81 mOhm
Package / Case	4-SMD, Flat Leads Exposed Pad	4-SMD, Flat Leads Exposed Pad, SC-74A, SOT-753
PSRR	70 dB	65 - 75 dB
Supplier Device Package	HSNT-4-B	HSNT-4-A, HSNT-4-B, SOT-23-5
Voltage - Input (Max) [Max]	5.5 V	5.5 V
Voltage - Output (Max) [Max]	5.5 V	5.5 V
Voltage - Output (Min/Fixed)	2.7 V	1 - 3.5 V
Voltage - Output (Min/Fixed)	-	2.3 V
Voltage Dropout (Max) [Max]	0.31 V	0.27 - 0.84 V

S-1333 Series

IC REG LIN 1.5V 300MA HSNT-4-A

...

Part	Control Features	Current - Output	Current - Quiescent (Iq)	Supplier Device Package	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Voltage - Output (Max) [Max]	Voltage Dropout (Max) [Max]	Number of Regulators	Current - Supply (Max) [Max]	Voltage - Input (Max) [Max]	PSRR	Voltage - Output (Min/Fixed)	Output Configuration	Mounting Type
ABLIC Inc. S-1333B15-A4T1U3	Enable	300 mA	1 µA	HSNT-4-A	1.81 mOhm	85 °C	-40 °C	4-SMD, Flat Leads Exposed Pad	5.5 V	0.47 V	1	38 µA	5.5 V	75 dB	1.5 V	Positive	Surface Mount
ABLIC Inc. S-1333A11-A4T1U3	Enable	250 mA	1 µA	HSNT-4-A	1.81 mOhm	85 °C	-40 °C	4-SMD, Flat Leads Exposed Pad		0.72 V	1	38 µA	5.5 V	75 dB	1.1 V	Positive	Surface Mount
ABLIC Inc. S-1333C32-A4T2U3	Enable	300 mA	1 µA	HSNT-4-B	1.81 mOhm	85 °C	-40 °C	4-SMD, Flat Leads Exposed Pad	5.5 V	0.28 V	1	38 µA	5.5 V	65 dB	3.2 V	Positive	Surface Mount
ABLIC Inc. S-1333C16-M5T1U3	Enable	300 mA	1 µA	SOT-23-5	1.81 mOhm	85 °C	-40 °C	SC-74A, SOT-753	5.5 V	0.47 V	1	38 µA	5.5 V	75 dB	1.6 V	Positive	Surface Mount
ABLIC Inc. S-1333A28-A4T1U3	Enable	300 mA	1 µA	HSNT-4-A	1.81 mOhm	85 °C	-40 °C	4-SMD, Flat Leads Exposed Pad		0.31 V	1	38 µA	5.5 V	70 dB	2.8 V	Positive	Surface Mount
ABLIC Inc. S-1333A32-A4T1U3	Enable	300 mA	1 µA	HSNT-4-A	1.81 mOhm	85 °C	-40 °C	4-SMD, Flat Leads Exposed Pad		0.28 V	1	38 µA	5.5 V	65 dB	3.2 V	Positive	Surface Mount
ABLIC Inc. S-1333B15-M5T1U3	Enable	300 mA	1 µA	SOT-23-5	1.81 mOhm	85 °C	-40 °C	SC-74A, SOT-753	5.5 V	0.47 V	1	38 µA	5.5 V	75 dB	1.5 V	Positive	Surface Mount
ABLIC Inc. S-1333C12-M5T1U3	Enable	275 mA	1 µA	SOT-23-5	1.81 mOhm	85 °C	-40 °C	SC-74A, SOT-753	5.5 V	0.64 V	1	38 µA	5.5 V	75 dB	1.2 V	Positive	Surface Mount
ABLIC Inc. S-1333A33-A4T1U3	Enable	300 mA	1 µA	HSNT-4-A	1.81 mOhm	85 °C	-40 °C	4-SMD, Flat Leads Exposed Pad		0.27 V	1	38 µA	5.5 V	65 dB	3.3 V	Positive	Surface Mount
ABLIC Inc. S-1333C22-M5T1U3	Enable	300 mA	1 µA	SOT-23-5	1.81 mOhm	85 °C	-40 °C	SC-74A, SOT-753	5.5 V	0.36 V	1	38 µA	5.5 V	70 dB	2.2 V	Positive	Surface Mount
