J8-2
ActiveTE Connectivity AMP Connectors

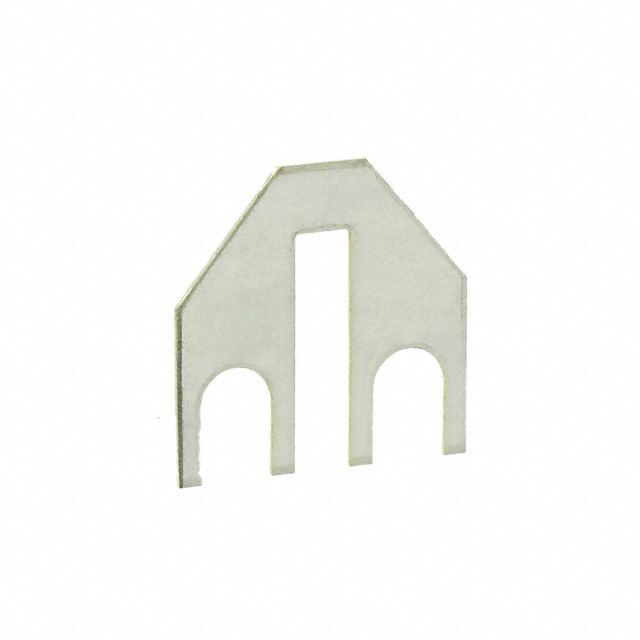

JUMPER BARRIER BLK 2POS SPADE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
J8-2
ActiveTE Connectivity AMP Connectors
JUMPER BARRIER BLK 2POS SPADE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | J8-2 | J8 Series |
|---|---|---|
| Contact Finish | Tin | Tin |
| Contact Material | Copper Alloy | Copper Alloy |
| For Use With/Related Products | #8, Buchanan Series | #8, Buchanan Series |
| Number of Positions | 2 | 2 - 4 |
| Pitch [x] | 11.12 mm | 11.12 mm |
| Pitch [x] | 0.438 in | 0.438 in |
| Style | Spade, Around Barrier | Spade, Around Barrier |
| Type | Barrier Block | Barrier Block |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.86 | |
| 10 | $ 0.82 | |||
| 25 | $ 0.78 | |||
| 50 | $ 0.77 | |||
| 100 | $ 0.67 | |||
| 250 | $ 0.65 | |||
| 500 | $ 0.61 | |||
| 1000 | $ 0.53 | |||
| 2500 | $ 0.49 | |||
J8 Series
JUMPER BARRIER BLK 4POS SPADE
| Part | Contact Material | For Use With/Related Products | Style | Contact Finish | Type | Number of Positions | Pitch [x] | Pitch [x] |
|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors J8-4 | Copper Alloy | #8, Buchanan Series | Around Barrier, Spade | Tin | Barrier Block | 4 | 11.12 mm | 0.438 in |
TE Connectivity AMP Connectors J8-2 | Copper Alloy | #8, Buchanan Series | Around Barrier, Spade | Tin | Barrier Block | 2 | 11.12 mm | 0.438 in |
TE Connectivity AMP Connectors J8-3 | Copper Alloy | #8, Buchanan Series | Around Barrier, Spade | Tin | Barrier Block | 11.12 mm | 0.438 in |
Description
General part information
J8 Series
2 Position Barrier Block Jumper Around Barrier, Spade
