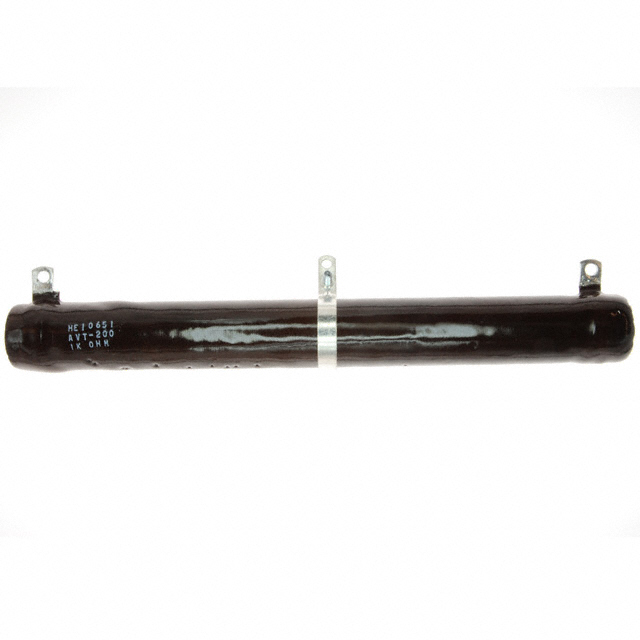

AVT20020E1K000KE
ActiveVishay Huntington Electric Inc.
ADJ PWR RES 1K OHM 225W CHAS MT
AVT20020E1K000KE
ActiveVishay Huntington Electric Inc.
ADJ PWR RES 1K OHM 225W CHAS MT
Description
General part information
AVT20020E1K000KE
1 kOhms 225 W Slide Adjustable Power Resistor Chassis Mount 1.126" OD, 0.748" ID (28.60mm x 19.00mm) 10.512" (267.00mm) Length
Technical Specifications
Parameters and characteristics for this part
| Specification | AVT20020E1K000KE |
|---|---|
| Adjustment Type | Slide |
| Diameter (Inner) | 0.748 in |
| Diameter (Length) | 28.6 mm |
| Diameter (Outer) | 1.126 in |
| Diameter (Width) | 19 mm |
| Length | 10.512 in |
| Mounting Type | Chassis Mount |
| Package Leads | 3 Leads |
| Package Name | Radial |
| Power (Watts) | 225 W |
| Resistance | 1 kOhm |
| Termination | Solder Lug |
| Tolerance | 10 % |
