794130-2

Active

TE Connectivity AMP Connectors

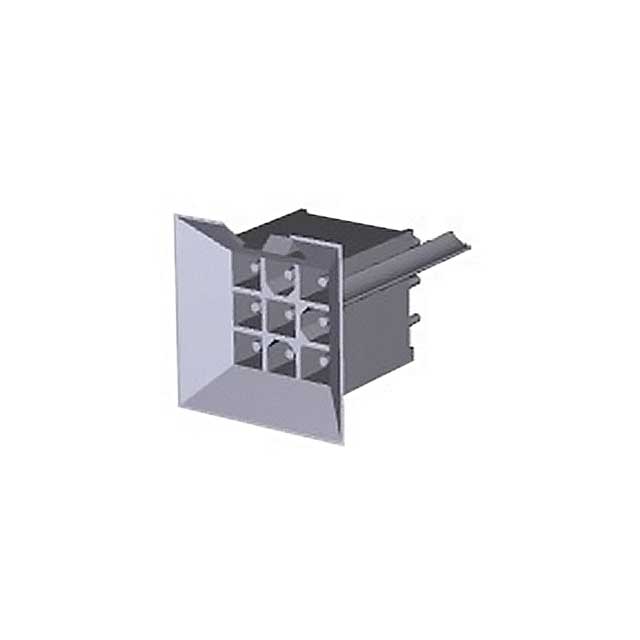

CONN HEADER VERT 9POS 4.14MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 9POS 4.14MM

Technical Specifications

Parameters and characteristics for this part

Specification	794130-2

Applications	General Purpose
Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	9.5 A
Fastening Type	Locking Ramp
Features	Board Guide
Insulation Color	White
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	9
Number of Positions Loaded	All
Number of Rows	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	4.14 mm
Pitch - Mating	0.163 in
Row Spacing - Mating	4.14 mm
Row Spacing - Mating	0.163 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

CONN HEADER VERT 9POS 4.14MM

Part	Contact Finish - Post	Applications	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Row Spacing - Mating	Row Spacing - Mating	Contact Shape	Number of Positions	Number of Rows	Features	Contact Type	Shrouding	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Current Rating (Amps)	Mounting Type	Insulation Color	Insulation Material	Contact Finish - Mating	Fastening Type	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Material Flammability Rating
TE Connectivity AMP Connectors 794130-2	Tin	General Purpose	Board to Cable/Wire	30 Áin	0.76 Ám	Header	4.14 mm	0.163 in	Circular	9	3	Board Guide	Male Pin	Shrouded - 4 Wall	105 ░C	-55 °C	Solder	9.5 A	Through Hole	White	Nylon, Polyamide (PA)	Gold	Locking Ramp	4.14 mm	0.163 in	All	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 9 position 0.163" (4.14mm)
