12BL5MX

Active

Switchcraft Inc.

CONN PLUG MALE DIN 5POS SOLDER

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN PLUG MALE DIN 5POS SOLDER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	12BL5MX	12B Series

Backshell Material, Plating	Nickel, Die Cast	Nickel, Die Cast
Color	Silver	Silver
Connector Type	Plug, Male Pins	Plug, Male Pins
Current Rating (Amps)	3 A	3 A
Fastening Type	Push-Pull	Push-Pull
Features	Backshell, Strain Relief, Cable Clamp	Backshell, Strain Relief, Cable Clamp
Insert Material	Plastic	Plastic
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	-	6
Orientation	4	4
Orientation	-	6
Primary Material	Metal	Metal
Shell Finish	Nickel	Nickel
Shell Material	Zinc Die Cast	Zinc Die Cast
Shell Size - Insert	DIN (240 Degree)	DIN (240 Degree)
Termination	Solder	Solder
Voltage Rating	34 V	34 V

CONN PLUG MALE DIN 5POS SOLDER

Part	Termination	Fastening Type	Backshell Material, Plating	Orientation	Shell Finish	Insert Material	Shell Size - Insert	Voltage Rating	Shell Material	Connector Type	Color	Features	Mounting Type	Current Rating (Amps)	Primary Material	Number of Positions	Orientation
Switchcraft Inc. 12BL5MX	Solder	Push-Pull	Die Cast, Nickel	4	Nickel	Plastic	DIN (240 Degree)	34 V	Zinc Die Cast	Male Pins, Plug	Silver	Backshell, Cable Clamp, Strain Relief	Free Hanging (In-Line)	3 A	Metal
Switchcraft Inc. 12BL6MX	Solder	Push-Pull	Die Cast, Nickel		Nickel	Plastic	DIN (240 Degree)		Zinc Die Cast	Male Pins, Plug	Silver	Backshell, Cable Clamp, Strain Relief	Free Hanging (In-Line)		Metal	6	6
Switchcraft Inc. 12BL5M	Solder	Push-Pull	Die Cast, Nickel	4	Nickel	Plastic	DIN (240 Degree)	34 V	Zinc Die Cast	Male Pins, Plug	Silver	Backshell, Cable Clamp, Strain Relief	Free Hanging (In-Line)	3 A	Metal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

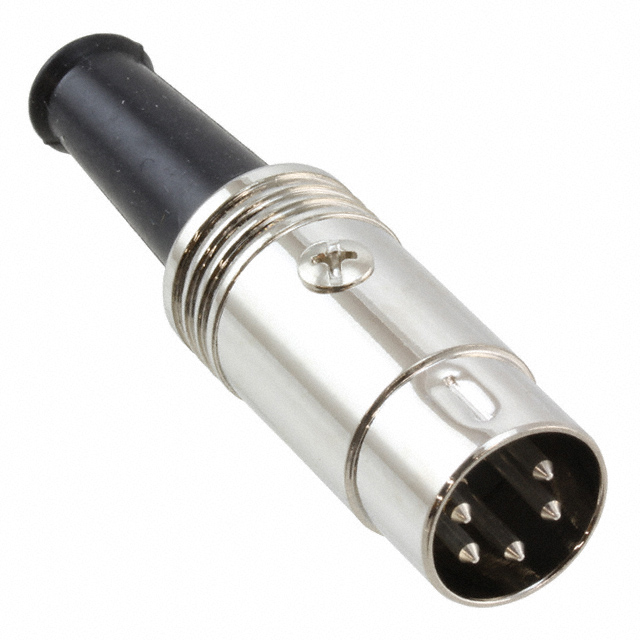

5 Position Circular Connector Plug, Male Pins Solder
