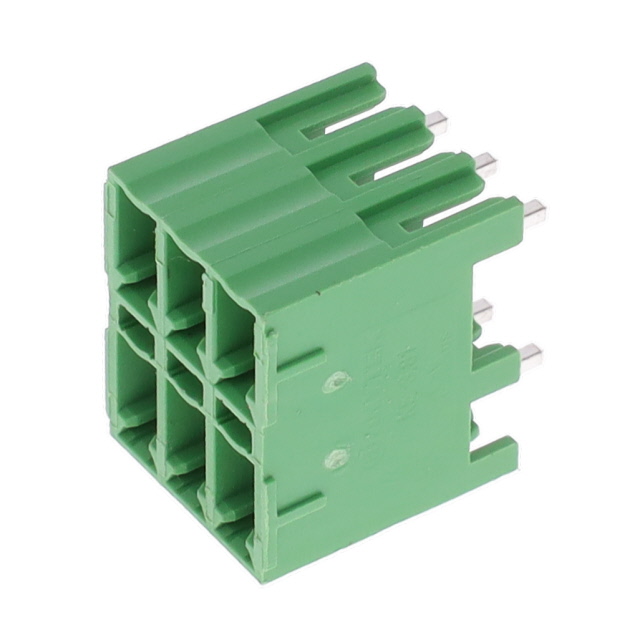

Specification	KE063150A00AG

Color	Green
Contact Material	Copper
Contact Mating Finish	Tin
Current - UL	5.5 A
Header Orientation	Vertical
Housing Material	Nylon 6/6, Glass Filled, PA66, Polyamide
Insulation Height	0.535 in
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	2
Number of Positions	6
Operating Temperature (Max)	115 °C
Operating Temperature (Min)	-40 °C
Pitch	0.15 in
Positions Per Level	3
Termination Style	Solder
Type	Header, Male Pins
Voltage - UL	300 V

KE06 Series

Part	Number of Positions	Operating Temperature (Min)	Operating Temperature (Max)	Number of Levels	Voltage - UL	Pitch	Current - UL	Contact Mating Finish	Mounting Type	Type	Termination Style	Color	Header Orientation	Features	Positions Per Level	Insulation Height	Contact Material	Material Flammability Rating	Contact Tail Length	Housing Material	Header Orientation Angle
McGill Microwave Systems KE061250A000G	6	-40 °C	115 °C	2	160 V	0.138 in	5.5 A	Tin	Through Hole	Header Male Pins Shrouded (4 Side)	Solder	Green	Vertical	Mating Flange	3	0.524 in	Copper	UL94 V-0	0.102 in	Thermoplastic
McGill Microwave Systems KE063250A000G	6	-40 °C	115 °C	2	300 V	0.15 in	5.5 A	Tin	Through Hole	Header Male Pins Shrouded (4 Side)	Solder	Green	Vertical	Mating Flange	3	0.535 in	Copper	UL94 V-0	0.102 in	Thermoplastic
McGill Microwave Systems KE063251A000G	6	-40 °C	115 °C	2	300 V	0.15 in	5.5 A	Tin	Through Hole	Header Male Pins Shrouded (4 Side)	Solder	Green	Right Angle	Mating Flange	3	0.598 in	Copper	UL94 V-0	0.102 in	Thermoplastic	90 °
McGill Microwave Systems KE063350A000G	6	-40 °C	115 °C	2	300 V	0.15 in	5.5 A	Tin	Through Hole	Header Male Pins Shrouded (4 Side)	Solder	Green	Vertical	Locking Ramp	3	0.535 in	Copper	UL94 V-0	0.102 in	Thermoplastic
McGill Microwave Systems KE0674520000G	6	-40 °C	115 °C	2	300 V	0.197 in	12 A	Tin	Through Hole	Header Male Pins Shrouded (2 Side)	Solder	Green	Vertical		3	0.693 in	Copper	UL94 V-0	0.102 in	Thermoplastic
McGill Microwave Systems KE0651530000G	6	-40 °C	115 °C	2	300 V	5.08 mm	12 A	Tin	Through Hole	Header Male Pins Shrouded (4 Side)	Solder	Green	Right Angle		3	0.791 in	Copper	UL94 V-0	0.102 in	Thermoplastic	90 °
McGill Microwave Systems KE061351A000G	6	-40 °C	115 °C	2	160 V	0.138 in	5.5 A	Tin	Through Hole	Header Male Pins Shrouded (4 Side)	Solder	Green	Right Angle	Locking Ramp	3	0.598 in	Copper	UL94 V-0	0.102 in	Thermoplastic	90 °
McGill Microwave Systems KE063151A000G	6	-40 °C	115 °C	2	300 V	0.15 in	5.5 A	Tin	Through Hole	Header Male Pins Shrouded (4 Side)	Solder	Green	Right Angle		3	0.598 in	Copper	UL94 V-0	0.102 in	Thermoplastic	90 °
McGill Microwave Systems KE061151A000G	6	-40 °C	115 °C	2	160 V	0.138 in	5.5 A	Tin	Through Hole	Header Male Pins Shrouded (4 Side)	Solder	Green	Right Angle		3	0.598 in	Copper	UL94 V-0	0.102 in	Thermoplastic	90 °
McGill Microwave Systems KE063351A000G	6	-40 °C	115 °C	2	300 V	0.15 in	5.5 A	Tin	Through Hole	Header Male Pins Shrouded (4 Side)	Solder	Green	Right Angle	Locking Ramp	3	0.598 in	Copper	UL94 V-0	0.102 in	Thermoplastic	90 °
