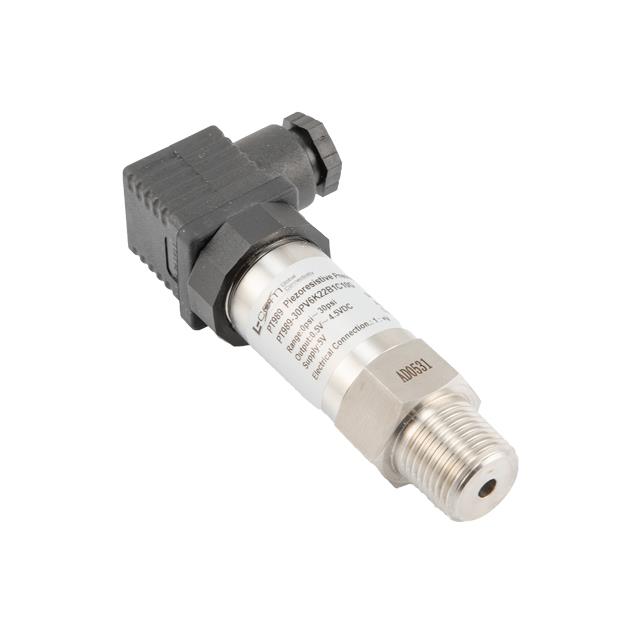

PT989-30PV6K22B1C10G
ObsoletePasternack
0~30PSI, 0.5~4.5VDC OUTPUT, 5VDC
PT989-30PV6K22B1C10G
ObsoletePasternack
0~30PSI, 0.5~4.5VDC OUTPUT, 5VDC
Description
General part information
PT989-30PV6K22B1C10G
0~30PSI, 0.5~4.5VDC OUTPUT, 5VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | PT989-30PV6K22B1C10G |
|---|---|
| Accuracy | 0.5 % RH |
| Applications | Industrial Automation |
| Features | Temperature Compensated |
| Maximum Pressure | 45 PSI |
| Operating Pressure | 30 PSI |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -30 °C |
| Output Type | Analog Voltage |
| Output Voltage (Max) | 4.5 V |
| Output Voltage (Min) | 0.5 V |
| Package / Case | Threaded, Cylinder |
| Port Diameter | 0.5 in |
| Port Feature | NPT |
| Port Gender | Male |
| Port Style | Threaded |
| Pressure Type | Gauge |
| Termination Style | Connector |
| Voltage - Supply | 5 VDC |
