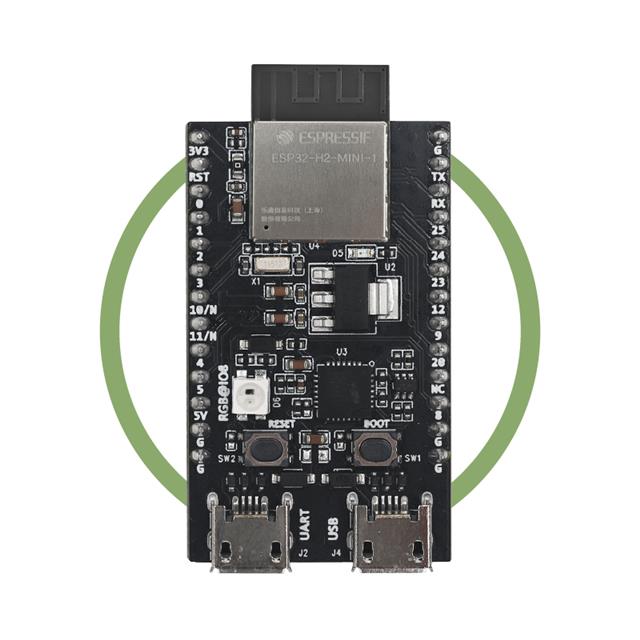

ESP32-H2-DEVKITM-1-N4

Active

Espressif Systems

ESP32-H2-DEVKITM-1 IS AN ENTRY-L

Search across all available documentation for this part.

Active

Espressif Systems

ESP32-H2-DEVKITM-1 IS AN ENTRY-L

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 10.00

General part information

ESP32-H2-MINI-1 ESP32-H Transceiver; 802.15.4 (Zigbee®), Bluetooth® Smart 4.x Low Energy (BLE) Evaluation Board

Technical documentation and resources

Specification	ESP32-H2-DEVKITM-1-N4	ESP32-H2 Series

Antenna Type	-	PCB Trace
For Use With/Related Products	ESP32-H2-MINI-1	ESP32-H2-MINI-1
Frequency	-	2.4 GHz
Memory Size	-	256 kB
Mounting Type	-	Surface Mount
Note	ADC not calibrated	ADC not calibrated
Package / Case	-	53-SMD Module
Protocol	-	Zigbee®, Thread, Bluetooth v5.0
RF Family/Standard	-	WiFi, Bluetooth, 802.15.4
Serial Interfaces	-	I2C, SPI, USB, PWM, UART, I2S
Supplied Contents	Board(s)	Board(s)
Type	Transceiver, Bluetooth® Smart 4.x Low Energy (BLE), 802.15.4 (ZigBee®)	Transceiver, Bluetooth® Smart 4.x Low Energy (BLE), 802.15.4 (ZigBee®)

Part	Type	Supplied Contents	For Use With/Related Products	Note	Frequency	Memory Size	RF Family/Standard	Serial Interfaces	Protocol	Package / Case	Mounting Type	Antenna Type
Espressif Systems ESP32-H2-DEVKITM-1-N4	802.15.4 (ZigBee®), Bluetooth® Smart 4.x Low Energy (BLE), Transceiver	Board(s)	ESP32-H2-MINI-1	ADC not calibrated
Espressif Systems ESP32-H2-MINI-1-N4					2.4 GHz	256 kB	802.15.4, Bluetooth, WiFi	I2C, I2S, PWM, SPI, UART, USB	Bluetooth v5.0, Thread, Zigbee®	53-SMD Module	Surface Mount	PCB Trace
Espressif Systems ESP32-H2-MINI-1-N2					2.4 GHz	256 kB	802.15.4, Bluetooth, WiFi	I2C, I2S, PWM, SPI, UART, USB	Bluetooth v5.0, Thread, Zigbee®	53-SMD Module	Surface Mount	PCB Trace
