KD1210510000G
ActiveMcGill Microwave Systems

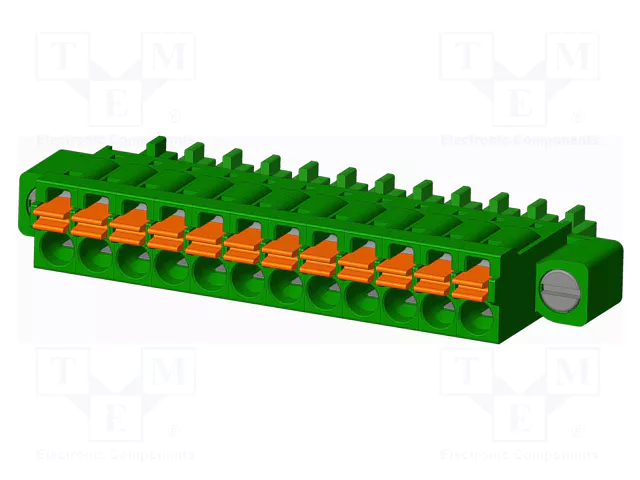

CONNECTOR: PLUGGABLE TERMINAL BLOCK; PLUG; FEMALE; 5.5A; 160V
KD1210510000G
ActiveMcGill Microwave Systems
CONNECTOR: PLUGGABLE TERMINAL BLOCK; PLUG; FEMALE; 5.5A; 160V
Description
General part information
KD1210510000G
CONNECTOR: PLUGGABLE TERMINAL BLOCK; PLUG; FEMALE; 5.5A; 160V
Technical Specifications
Parameters and characteristics for this part
| Specification | KD1210510000G |
|---|---|
| Color | Green |
| Contact Mating Finish | Tin |
| Current - UL | 5.5 A |
| Features | Mating Flange |
| Mounting Type | Free Hanging (In-Line) |
| Number of Levels | 1 |
| Number of Positions | 12 |
| Operating Temperature (Max) | 115 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.138 in |
| Plug Wire Entry Angle | 180 ° |
| Positions Per Level | 12 |
| Termination Style | Screwless - Leg Spring, Push-In Spring |
| Type | Female Sockets, Plug |
| Voltage - UL | 160 V |
| Wire Gauge or Range - AWG (Max) | 24 AWG |
| Wire Gauge or Range - AWG (Min) | 16 AWG |
