04015SS-24N-AL-00

Active

NMB TECHNOLOGIES

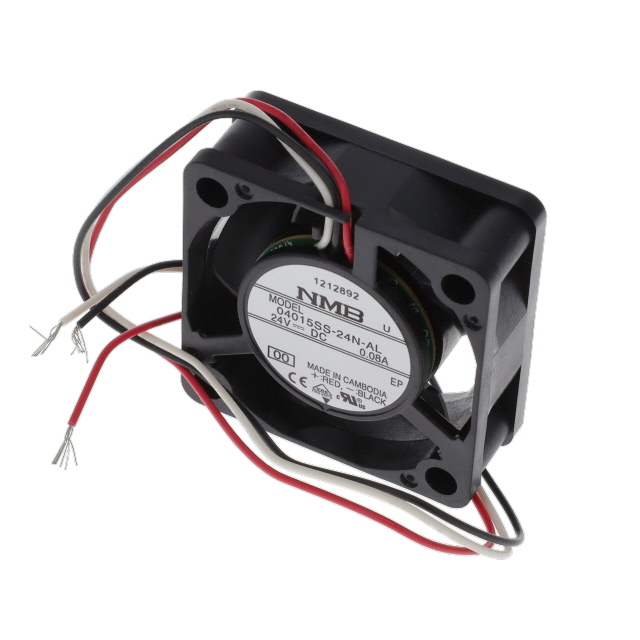

DC AXIAL FAN, 24 V, SQUARE, 40 MM, 15 MM, SLEEVE BEARING, 7.4 CFM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

04015SS-24N-AL-00

Active

NMB TECHNOLOGIES

DC AXIAL FAN, 24 V, SQUARE, 40 MM, 15 MM, SLEEVE BEARING, 7.4 CFM

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	04015SS-24N-AL-00	04015SS Series

Air Flow	0.207 mł/min	0.16 - 0.207 mł/min
Air Flow	7.4 CFM	5.7 - 7.4 CFM
Bearing Type	Sleeve	Sleeve
Current Rating (Amps)	50 mA	0.25 - 60 mA
Fan Type	Tubeaxial	Tubeaxial
Features	Locked Rotor Sensor, Auto Restart	Locked Rotor Sensor, Auto Restart, Speed Sensor (Tach)
Lifetime @ Temp.	40000 Hrs	40000 Hrs
Material - Blade	Plastic	Plastic
Material - Frame	Aluminum	Plastic, Aluminum
Noise	32 dB	26 - 32 dB(A)
Operating Temperature [Max]	70 °C	60 - 70 °C
Operating Temperature [Max]	70 °C	60 - 70 °C
Operating Temperature [Min]	-10 °C	-10 °C
Operating Temperature [Min]	-10 °C	-10 °C
Power (Watts)	1.2 W	0.48 - 720 W
RPM	8300 RPM	6300 - 8300 RPM
Size / Dimension	Square	Square
Size / Dimension [x]	40 mm	40 mm
Size / Dimension [z]	40 mm	40 mm
Static Pressure	67.3 Pa	52.3 - 67.3 Pa
Static Pressure	0.27 in H2O	0.21 - 0.27 in H2O
Termination	3 Wire Leads	3 Wire Leads, 2 Wire Leads
Voltage - Rated	24 VDC	12 - 24 VDC
Voltage Range [Max]	25.2 VDC	13.8 - 27.6 VDC
Voltage Range [Min]	10 VDC	6 - 10 VDC
Weight	-	23.13 g
Weight	-	0.051 lb
Width [x]	15 mm	15 mm

04015SS Series

DC AXIAL FAN, 24 V, SQUARE, 40 MM, 15 MM, SLEEVE BEARING, 6.4 CFM

Part	Width [x]	Current Rating (Amps)	Voltage - Rated	RPM	Termination	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Lifetime @ Temp.	Features	Fan Type	Voltage Range [Min]	Voltage Range [Max]	Bearing Type	Material - Blade	Noise	Material - Frame	Static Pressure	Static Pressure	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Air Flow	Air Flow	Power (Watts)	Weight	Weight
NMB TECHNOLOGIES 04015SS-24M-AL-00	15 mm	40 mA	24 VDC	7300 RPM	3 Wire Leads	40 mm	Square	40 mm	40000 Hrs	Auto Restart, Locked Rotor Sensor	Tubeaxial	10 VDC	25.2 VDC	Sleeve	Plastic	29 dB(A)	Plastic	0.21 in H2O	52.3 Pa	70 °C	70 °C	-10 °C	-10 °C	0.179 mł/min	6.4 CFM
NMB TECHNOLOGIES 04015SS-12L-AA-00	15 mm	40 mA	12 VDC	6300 RPM	2 Wire Leads	40 mm	Square	40 mm	40000 Hrs	Auto Restart	Tubeaxial	6 VDC	13.8 VDC	Sleeve	Plastic	26 dB	Aluminum			70 °C	70 °C	-10 °C	-10 °C	0.16 m³/min	5.7 CFM	0.48 W
NMB TECHNOLOGIES 04015SS-12M-AL-00	15 mm	50 mA	12 VDC	7300 RPM	3 Wire Leads	40 mm	Square	40 mm	40000 Hrs	Auto Restart, Locked Rotor Sensor	Tubeaxial	6 VDC	13.8 VDC	Sleeve	Plastic	29 dB(A)	Plastic	0.21 in H2O	52.3 Pa	70 °C	70 °C	-10 °C	-10 °C	0.179 mł/min	6.4 CFM	600 mW
NMB TECHNOLOGIES 04015SS-12L-AT-00	15 mm	40 mA	12 VDC	6300 RPM	3 Wire Leads	40 mm	Square	40 mm	40000 Hrs	Auto Restart, Speed Sensor (Tach)	Tubeaxial	6 VDC	13.8 VDC	Sleeve	Plastic	26 dB	Aluminum			70 °C	70 °C	-10 °C	-10 °C	0.16 m³/min	5.7 CFM	0.48 W
NMB TECHNOLOGIES 04015SS-12L-AL-00	15 mm	40 mA	12 VDC	6300 RPM	3 Wire Leads	40 mm	Square	40 mm	40000 Hrs	Auto Restart, Locked Rotor Sensor	Tubeaxial	6 VDC	13.8 VDC	Sleeve	Plastic	26 dB	Plastic			70 °C	70 °C	-10 °C	-10 °C	0.16 m³/min	5.7 CFM	0.48 W
NMB TECHNOLOGIES 04015SS-24N-AA-00	15 mm	50 mA	24 VDC	8300 RPM	2 Wire Leads	40 mm	Square	40 mm	40000 Hrs	Auto Restart	Tubeaxial	10 VDC	25.2 VDC	Sleeve	Plastic	32 dB	Aluminum	0.27 in H2O	67.3 Pa	70 °C	70 °C	-10 °C	-10 °C	0.207 mł/min	7.4 CFM	1.2 W
NMB TECHNOLOGIES 04015SS-24N-AT-00	15 mm	50 mA	24 VDC	8300 RPM	3 Wire Leads	40 mm	Square	40 mm		Speed Sensor (Tach)	Tubeaxial	10 VDC	25.2 VDC	Sleeve	Plastic	32 dB	Plastic	0.27 in H2O	67.3 Pa	60 °C	60 °C	-10 °C	-10 °C	0.207 mł/min	7.4 CFM	1.2 W	23.13 g	0.051 lb
NMB TECHNOLOGIES 04015SS-12N-AA-00	15 mm	60 mA	12 VDC	8300 RPM	2 Wire Leads	40 mm	Square	40 mm	40000 Hrs	Auto Restart	Tubeaxial	6 VDC	13.8 VDC	Sleeve	Plastic	32 dB	Aluminum	0.27 in H2O	67.3 Pa	70 °C	70 °C	-10 °C	-10 °C	0.207 mł/min	7.4 CFM	720 mW
NMB TECHNOLOGIES 04015SS-24M-AA-00	15 mm	40 mA	24 VDC	7300 RPM	2 Wire Leads	40 mm	Square	40 mm	40000 Hrs	Auto Restart	Tubeaxial	10 VDC	25.2 VDC	Sleeve	Plastic	29 dB(A)	Aluminum	0.21 in H2O	52.3 Pa	70 °C	70 °C	-10 °C	-10 °C	0.179 mł/min	6.4 CFM
NMB TECHNOLOGIES 04015SS-12M-AT-00	15 mm	50 mA	12 VDC	7300 RPM	3 Wire Leads	40 mm	Square	40 mm	40000 Hrs	Auto Restart, Speed Sensor (Tach)	Tubeaxial	6 VDC	13.8 VDC	Sleeve	Plastic	29 dB(A)	Aluminum	0.21 in H2O	52.3 Pa	70 °C	70 °C	-10 °C	-10 °C	0.179 mł/min	6.4 CFM	600 mW

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 6.85
		10	$ 6.62
		25	$ 6.43
		50	$ 6.05
		100	$ 5.44
		360	$ 5.36
		720	$ 5.01
Newark	Each	1	$ 7.70
		1080	$ 6.97
		1980	$ 6.85
		2520	$ 6.72
		5040	$ 6.62
		10080	$ 6.38

Description

General part information

04015SS Series

Fan Tubeaxial 24VDC Square - 40mm L x 40mm H Sleeve 7.4 CFM (0.207m³/min) 3 Wire Leads
