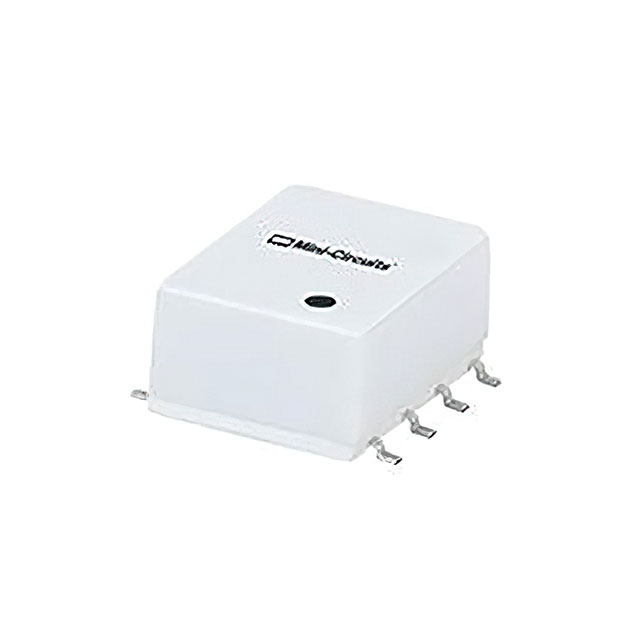

ADQ-32+
ActiveMini-Circuits
RF PWR DVDR 160MHZ-327MHZ 8SMD
ADQ-32+
ActiveMini-Circuits
RF PWR DVDR 160MHZ-327MHZ 8SMD
Description
General part information
ADQ-32+
RF Power Divider 160 MHz ~ 327 MHz Isolation (Min) 18dB, 1.22 VSWR, 5° Imbalance (Max) 8-SMD, Gull Wing
Technical Specifications
Parameters and characteristics for this part
| Specification | ADQ-32+ |
|---|---|
| Frequency (Max) | 327 MHz |
| Frequency (Min) | 160 MHz |
| Imbalance (Max) | 5 ° |
| Insertion Loss | 0.3 dB |
| Isolation (Min) | 18 dB |
| Package / Case | 8-SMD, Gull Wing |
| Size / Dimension Height | 0.215 in |
| Size / Dimension Length | 0.435 in |
| Size / Dimension Width | 0.31 in |
| VSWR (Max) | 1.22 |
