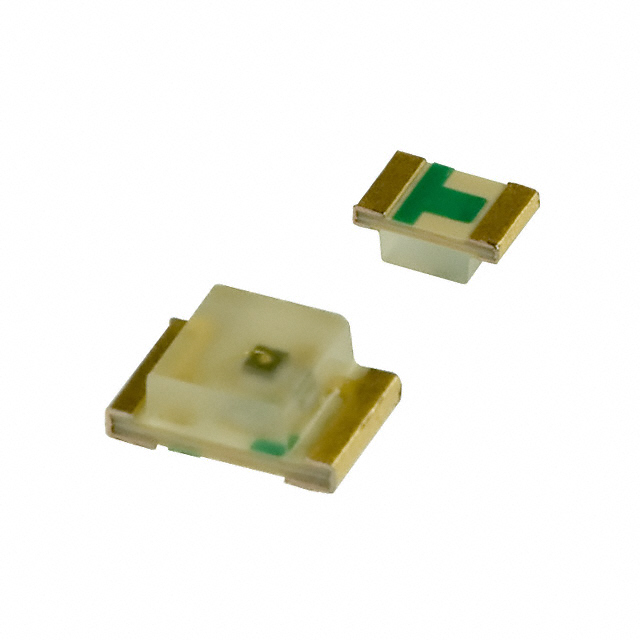

AA1112H-TR

Obsolete

Stanley Electric Co

LED ORANGE DIFFUSED 2125 SMD

Search across all available documentation for this part.

Obsolete

Stanley Electric Co

LED ORANGE DIFFUSED 2125 SMD

Technical Specifications

Parameters and characteristics for this part

LED ORANGE DIFFUSED 2125 SMD

Part	Millicandela Rating	Size / Dimension [x]	Size / Dimension [y]	Wavelength - Peak	Configuration	Height (Max) [Max]	Wavelength - Dominant	Lens Transparency	Lens Color	Supplier Device Package	Lens Style	Current - Test	Lens Size [y]	Lens Size [x]	Package / Case	Voltage - Forward (Vf) (Typ)	Mounting Type
Stanley Electric Co AA1112H-TR	3.7 mcd	2 mm	1.25 mm	605 nm	Standard	0.9 mm	606 nm	Diffused	White	2125	Rectangle with Flat Top	20 mA	1.25 mm	1.2 mm	0805	2.2 V	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Orange 606nm LED Indication - Discrete 2.2V 0805 (2012 Metric)
