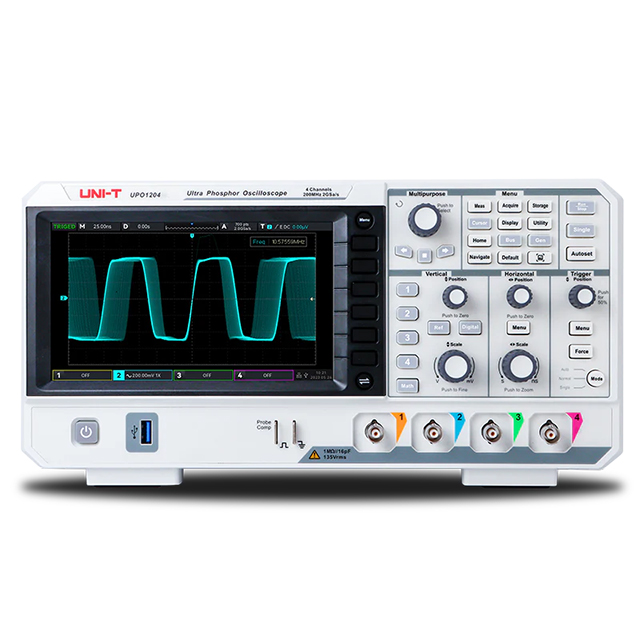

Specification	UPO1204

Analog Channels	4
Bandwidth	200 MHz
Channel Types	Analog
Channels (Count)	4
Display Type	LCD - Color
Function	Record, Playback, Save
Includes	Software
Input Impedance (Capacitance)	16 pF
Input Impedance (Resistance)	1 MΩ
Interface	USB
Memory Size	56 Mpts
Probe Attenuation	10 ratio
Probe Count	1
Probe Type	Passive
Rise Time (Typ)	1.8 ns
Sampling Rate (Per Second)	2 GHz
Type	Bench
Voltage - Input (Max)	400 VDC
Voltage - Supply (Maximum)	240 VAC
Voltage - Supply (Minimum)	100 VAC
