431101-18-0
ActiveCurtis Industries

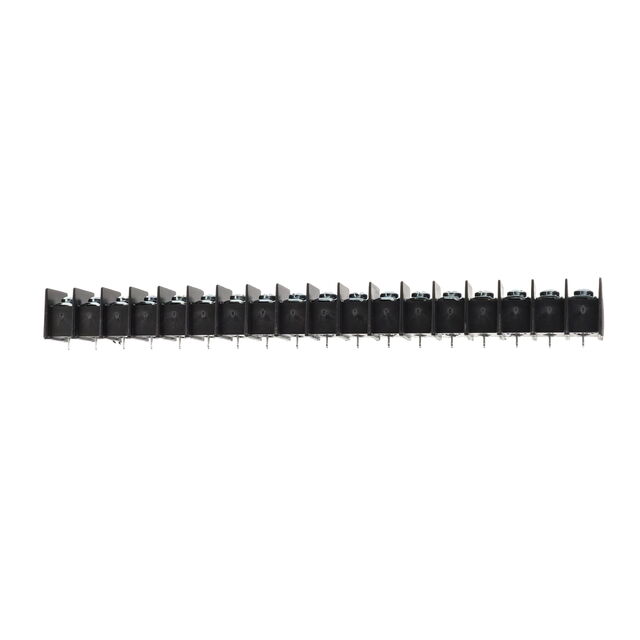

CONN BARRIER STRP 18CIRC 0.438"
Deep-Dive with AI
Search across all available documentation for this part.
431101-18-0
ActiveCurtis Industries
CONN BARRIER STRP 18CIRC 0.438"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 431101-18-0 | 431101 Series |
|---|---|---|
| Barrier Type | 2 Wall (Dual) | 2 Wall (Dual) |
| Bottom Termination | PC Pin | PC Pin |
| Current Rating (Amps) | 20 A | 20 A |
| Material - Insulation | Polypropylene (PP) | Polypropylene (PP) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Circuits | 18 | 1 - 25 |
| Number of Circuits | - | 8 |
| Number of Rows | 1 | 1 |
| Number of Wire Entries | 18 | 3 - 25 |
| Number of Wire Entries | - | 1 - 22 |
| Operating Temperature | 105 C | 105 C |
| Pitch [x] | 11.12 mm | 11.12 mm |
| Pitch [x] | 0.438 in | 0.438 in |
| Terminal Block Type | Barrier Block | Barrier Block |
| Top Termination | Screws | Screws |
| Voltage Rating | 600 V | 600 V |
| Wire Gauge [Max] | 22 AWG | 22 AWG |
| Wire Gauge [Min] | 12 AWG | 12 AWG |
431101 Series
CONN BARRIER STRP 22CIRC 0.438"
| Part | Operating Temperature | Material Flammability Rating | Bottom Termination | Wire Gauge [Min] | Wire Gauge [Max] | Current Rating (Amps) | Pitch [x] | Pitch [x] | Top Termination | Voltage Rating | Barrier Type | Material - Insulation | Number of Circuits | Terminal Block Type | Number of Wire Entries [custom] | Number of Rows | Mounting Type | Number of Wire Entries | Number of Circuits [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Curtis Industries 431101-22-0 | 105 C | UL94 V-0 | PC Pin | 12 AWG | 22 AWG | 20 A | 11.12 mm | 0.438 in | Screws | 600 V | 2 Wall (Dual) | Polypropylene (PP) | 22 | Barrier Block | 22 | 1 | Through Hole | ||
Curtis Industries 431101-11-0 | 105 C | UL94 V-0 | PC Pin | 12 AWG | 22 AWG | 20 A | 11.12 mm | 0.438 in | Screws | 600 V | 2 Wall (Dual) | Polypropylene (PP) | 11 | Barrier Block | 1 | Through Hole | 11 | ||
Curtis Industries 431101-20-0 | 105 C | UL94 V-0 | PC Pin | 12 AWG | 22 AWG | 20 A | 11.12 mm | 0.438 in | Screws | 600 V | 2 Wall (Dual) | Polypropylene (PP) | 20 | Barrier Block | 1 | Through Hole | 20 | ||
Curtis Industries 431101-25-0 | 105 C | UL94 V-0 | PC Pin | 12 AWG | 22 AWG | 20 A | 11.12 mm | 0.438 in | Screws | 600 V | 2 Wall (Dual) | Polypropylene (PP) | 25 | Barrier Block | 1 | Through Hole | 25 | ||
Curtis Industries 431101-01-0 | 105 C | UL94 V-0 | PC Pin | 12 AWG | 22 AWG | 20 A | Screws | 600 V | 2 Wall (Dual) | Polypropylene (PP) | 1 | Barrier Block | 1 | 1 | Through Hole | ||||
Curtis Industries 431101-12-0 | 105 C | UL94 V-0 | PC Pin | 12 AWG | 22 AWG | 20 A | 11.12 mm | 0.438 in | Screws | 600 V | 2 Wall (Dual) | Polypropylene (PP) | 12 | Barrier Block | 1 | Through Hole | 12 | ||
Curtis Industries 431101-03-0 | 105 C | UL94 V-0 | PC Pin | 12 AWG | 22 AWG | 20 A | 11.12 mm | 0.438 in | Screws | 600 V | 2 Wall (Dual) | Polypropylene (PP) | 3 | Barrier Block | 1 | Through Hole | 3 | ||
Curtis Industries 431101-18-0 | 105 C | UL94 V-0 | PC Pin | 12 AWG | 22 AWG | 20 A | 11.12 mm | 0.438 in | Screws | 600 V | 2 Wall (Dual) | Polypropylene (PP) | 18 | Barrier Block | 1 | Through Hole | 18 | ||
Curtis Industries 431101-14-0 | 105 C | UL94 V-0 | PC Pin | 12 AWG | 22 AWG | 20 A | 11.12 mm | 0.438 in | Screws | 600 V | 2 Wall (Dual) | Polypropylene (PP) | 14 | Barrier Block | 1 | Through Hole | 14 | ||
Curtis Industries 431101-17-0 | 105 C | UL94 V-0 | PC Pin | 12 AWG | 22 AWG | 20 A | 11.12 mm | 0.438 in | Screws | 600 V | 2 Wall (Dual) | Polypropylene (PP) | 17 | Barrier Block | 1 | Through Hole | 17 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.63 | |
| 10 | $ 9.35 | |||
| 25 | $ 8.82 | |||
| 50 | $ 8.39 | |||
| 100 | $ 8.23 | |||
| 250 | $ 7.17 | |||
| 500 | $ 6.91 | |||
| 1000 | $ 6.64 | |||
Description
General part information
431101 Series
18 Circuit 0.438" (11.12mm) Barrier Block Connector Screws
