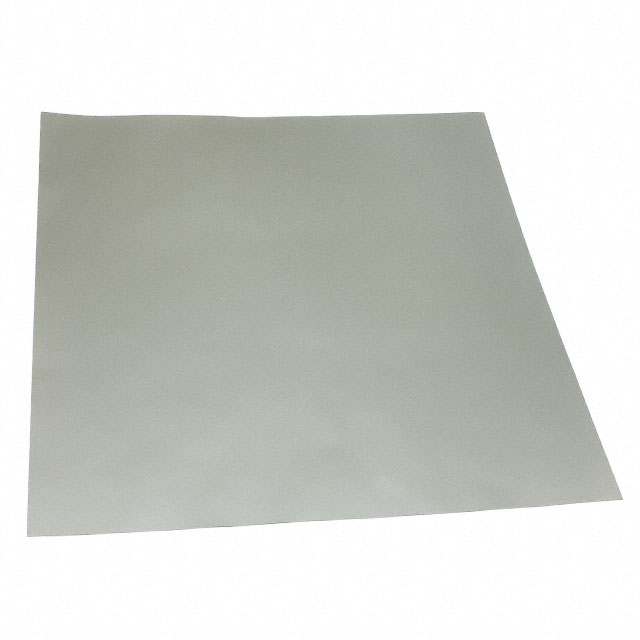

EM15TP-010-1

Active

RF EMI ABSORBING SHEET 1=10

Search across all available documentation for this part.

Active

RF EMI ABSORBING SHEET 1=10

Technical Specifications

Parameters and characteristics for this part

Specification	EM15TP-010-1

Adhesive	Single Sided, Non-Conductive
Length [x]	320 mm
Length [x]	12.598 in
Material	Metal Flakes, Polymer Resin
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-25 °C
Shape	Square
Shelf Life	12 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature	70 °F
Storage/Refrigeration Temperature	21 °C
Thickness - Overall [custom]	0.004 "
Thickness - Overall [custom]	0.1 mm
Type	Absorbing Sheet
Width [x]	12.992 in
Width [x]	330 mm

RF EMI ABSORBING SHEET 1=10

Part	Operating Temperature [Max]	Operating Temperature [Min]	Adhesive	Length [x]	Length [x]	Type	Shape	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Shelf Life	Shelf Life Start	Width [x]	Width [x]	Thickness - Overall [custom]	Thickness - Overall [custom]	Material
3M EM15TP-010-1	90 °C	-25 °C	Non-Conductive, Single Sided	320 mm	12.598 in	Absorbing Sheet	Square	70 °F	21 °C	12 Months	Date of Manufacture	12.992 in	330 mm	0.004 "	0.1 mm	Metal Flakes, Polymer Resin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF EMI Absorbing Sheet EM15TP Polymer Resin, Metal Flakes Non-Conductive, Single Sided 12.992" (330.00mm) X 12.598" (320.00mm) X 0.004" (0.10mm)
