Specification	TM21P-88P(18)

Cable Type	Solid or Stranded Wires, Round Cable
Color	Translucent - Clear
Connector Type	Ethernet, RJ45, Plug
Contact Finish	Gold
Contact Material	Copper Alloy
Current Rating	1 A

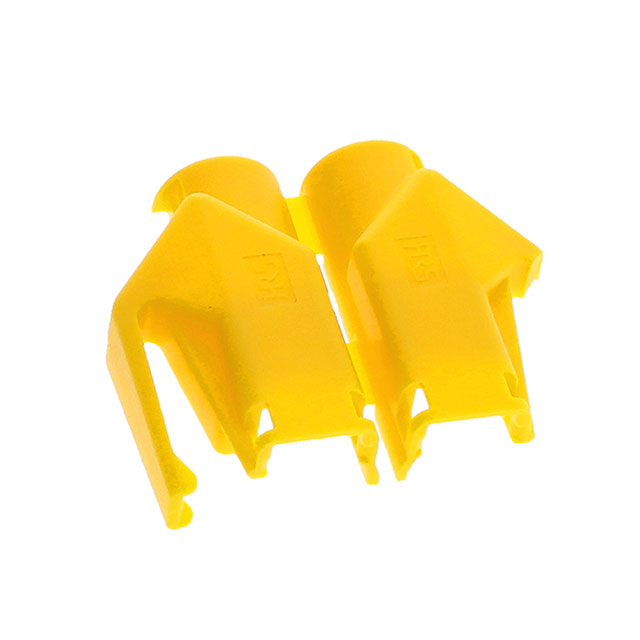

Features	Protective Latch Cover
Housing Material	PC, Polycarbonate
Number of Contacts	8
Number of Positions	8
Ratings	Cat5e
Shield Material	Copper Alloy
Shielding	Shielded
Termination	IDC
Voltage Rating	125 V
Wire Gauge	24 AWG

TM21P Series

Part	For Use With/Related Products	Color	Accessory Type	Connector Type	Shielding	Number of Positions	Number of Contacts	Length	Features	Termination	Cable Type	Ratings	Voltage Rating	Current Rating	Wire Gauge	Housing Material	Contact Material	Shield Material	Contact Finish
Hirose Electric Co Ltd TM21P-88P(22)	TM21 Plugs	Translucent - Clear	Guide Plate
Hirose Electric Co Ltd TM21P-TM-88P(63)				Plug
Hirose Electric Co Ltd TM21P-88P(21)		Black Boot Translucent - Clear Translucent - Clear; Black Boot		Ethernet Plug RJ45	Shielded	8	8	1.189 in	Protective Latch Cover	IDC	Not Specified Round Cable	Cat5	125 V	1 A	24 AWG	PC Polycarbonate	Copper Alloy	Copper Alloy	Gold
Hirose Electric Co Ltd TM21P-88P(16)		Translucent - Clear		Ethernet Plug RJ45	Shielded	8	8		Protective Latch Cover	IDC	Round Cable Solid or Stranded Wires	Cat5e	125 V	1 A	24 AWG	PC Polycarbonate	Copper Alloy	Copper Alloy	Gold
Hirose Electric Co Ltd TM21P-88P(08)		Translucent - Clear		Ethernet Plug RJ45	Shielded	8	8		Protective Latch Cover	IDC	Round Cable Solid or Stranded Wires	Cat5e
Hirose Electric Co Ltd TM21P-88P(32)		Translucent - Clear		Ethernet Plug RJ45	Shielded	8	8		Protective Latch Cover	IDC	Round Cable Solid or Stranded Wires	Cat5e	125 V	1 A	24 AWG	PC Polycarbonate	Copper Alloy	Copper Alloy	Gold
Hirose Electric Co Ltd TM21P-88P(31)		Translucent - Clear		Ethernet Plug RJ45	Shielded	8	8		Protective Latch Cover	IDC	Round Cable Solid or Stranded Wires	Cat5e	125 V	1 A	24 AWG	PC Polycarbonate	Copper Alloy	Copper Alloy	Gold
Hirose Electric Co Ltd TM21P-88P		Beige Boot Translucent - Clear		Ethernet Plug RJ45	Shielded	8	8	1.189 in	Protective Latch Cover	IDC	Round Cable Solid or Stranded Wires	Cat5	125 V	1 A	24 AWG	PC Polycarbonate	Copper Alloy	Copper Alloy	Gold
Hirose Electric Co Ltd TM21P-88P(03)		Translucent - Clear		Ethernet Plug RJ45	Shielded	8	8		Protective Latch Cover	IDC	Round Cable Solid or Stranded Wires	Cat5e	125 V	1 A	24 AWG	PC Polycarbonate	Copper Alloy	Copper Alloy	Gold
Hirose Electric Co Ltd TM21P-88P(19)		Translucent - Clear		Ethernet Plug RJ45	Shielded	8	8		Protective Latch Cover	IDC	Round Cable Solid or Stranded Wires	Cat5e	125 V	1 A	24 AWG	PC Polycarbonate	Copper Alloy	Copper Alloy	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

TM21P-88P(xx) Spec

TM21P-88P(18) | Datasheet
