DG2523DN-T1-GE4
ActiveVishay General Semiconductor - Diodes Division

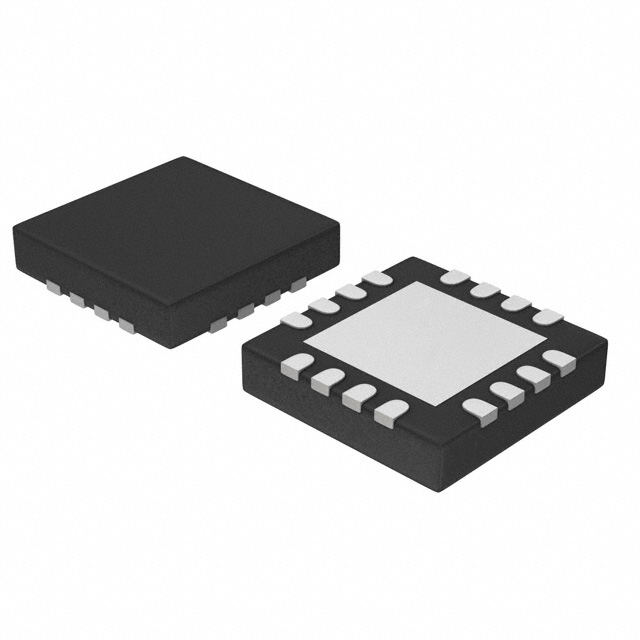

IC SWITCH DPDT X 2 550MOHM 16QFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DG2523DN-T1-GE4
ActiveVishay General Semiconductor - Diodes Division
IC SWITCH DPDT X 2 550MOHM 16QFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DG2523DN-T1-GE4 |
|---|---|
| -3db Bandwidth | 310 MHz |
| Channel-to-Channel Matching (ΔRon) | 50 mOhm |
| Charge Injection | -19 pC |
| Crosstalk | -61 dB |
| Current - Leakage (IS(off)) (Max) | 1 nA |
| Mounting Type | Surface Mount |
| Multiplexer/Demultiplexer Circuit | 2:2 |
| Number of Circuits | 2 |
| On-State Resistance (Max) [Max] | 550 mOhms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 16-VFQFN Exposed Pad |
| Supplier Device Package | 16-QFN (3x3) |
| Switch Circuit | DPDT |
| Switch Time (Ton, Toff) (Max) [custom] | 1 µs |
| Switch Time (Ton, Toff) (Max) [custom] | 60 µs |
| Voltage - Supply, Single (V+) [Max] | 5.5 V |
| Voltage - Supply, Single (V+) [Min] | 1.8 V |
