TR50JBC33R0
ActiveStackpole Electronics Inc
RES 33 OHM 5% 50W TO220
TR50JBC33R0
ActiveStackpole Electronics Inc
RES 33 OHM 5% 50W TO220
Description
General part information
TR50JBC33R0

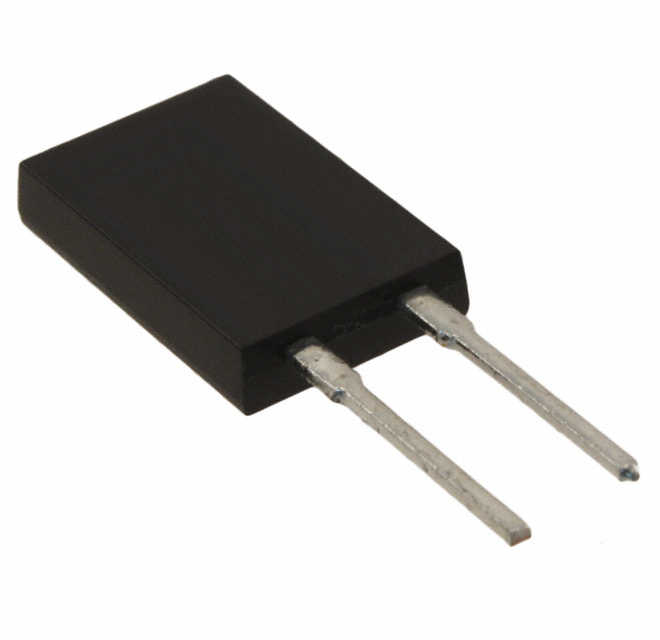

33 Ohms ±5% 50W Through Hole Resistor TO-220-2 Full Pack Moisture Resistant, Non-Inductive Thick Film
Technical Specifications
Parameters and characteristics for this part
| Specification | TR50JBC33R0 |
|---|---|
| Composition | Thick Film |
| Features | Moisture Resistant, Non-Inductive |
| Height - Seated (Max) | 16.51 mm |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -65 °C |
| Package / Case | TO-220-2 Full Pack |
| Package Name | TO-220 |
| Power (Watts) | 50 W |
| Resistance | 33 Ohms |
| Size / Dimension Length | 0.41 in |
| Size / Dimension Width | 0.125 in |
| Temperature Coefficient | 50 ppm/°C |
| Tolerance | 5 % |
