1217955-1
ActiveTE Connectivity AMP Connectors

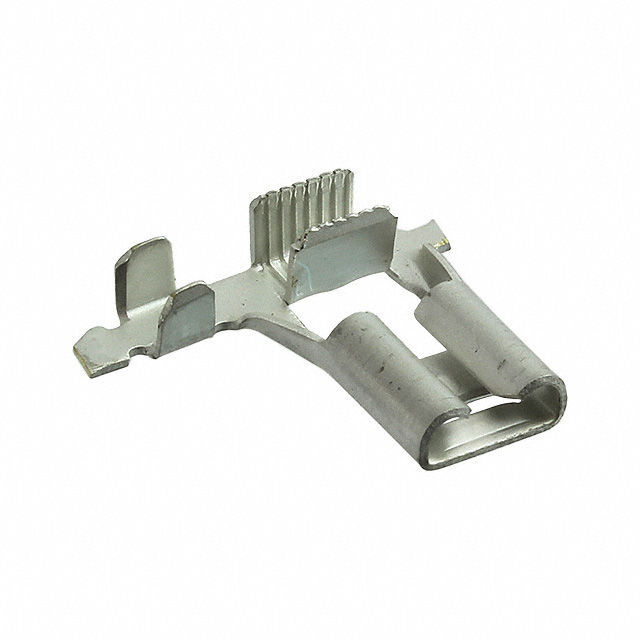

CONN QC RCPT 14-18AWG 0.187
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1217955-1
ActiveTE Connectivity AMP Connectors
CONN QC RCPT 14-18AWG 0.187
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1217955-1 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Gender | Female |
| Insulation | Non-Insulated |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Tab Length | 0.24 " |
| Tab Length | 6.1 mm |
| Tab Thickness | 0.032 in |
| Tab Thickness | 0.81 mm |
| Tab Width | 4.75 mm |
| Tab Width | 0.187 in |
| Terminal Type | Flag, Angled - 90° |
| Termination | Crimp |
| Wire Gauge [Max] | 18 AWG |
| Wire Gauge [Min] | 14 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.20 | |
| 10 | $ 0.17 | |||
| 25 | $ 0.15 | |||
| 50 | $ 0.15 | |||
| 100 | $ 0.14 | |||
| 250 | $ 0.13 | |||
| 500 | $ 0.12 | |||
| 1000 | $ 0.11 | |||
| 2500 | $ 0.11 | |||
| Tape & Reel (TR) | 15000 | $ 0.07 | ||
1217955 Series
CONN QC RCPT 14-18AWG 0.187
| Part | Wire Gauge [Min] | Wire Gauge [Max] | Terminal Type | Contact Finish | Tab Thickness | Tab Thickness | Mounting Type | Tab Width | Tab Width | Insulation | Gender | Tab Length | Tab Length | Contact Material | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1217955-1 | 14 AWG | 18 AWG | Angled - 90°, Flag | Tin | 0.032 in | 0.81 mm | Free Hanging (In-Line), Right Angle | 4.75 mm | 0.187 in | Non-Insulated | Female | 0.24 " | 6.1 mm | Brass | Crimp |
Description
General part information
1217955 Series
0.187" (4.75mm) Quick Connect Female 14-18 AWG Crimp Connector Non-Insulated
