CTL3VGA-500
ActivePasternack
VGA BULK 3 COAX+STP 500FT BLK
CTL3VGA-500
ActivePasternack
VGA BULK 3 COAX+STP 500FT BLK
Description
General part information
CTL3VGA-500

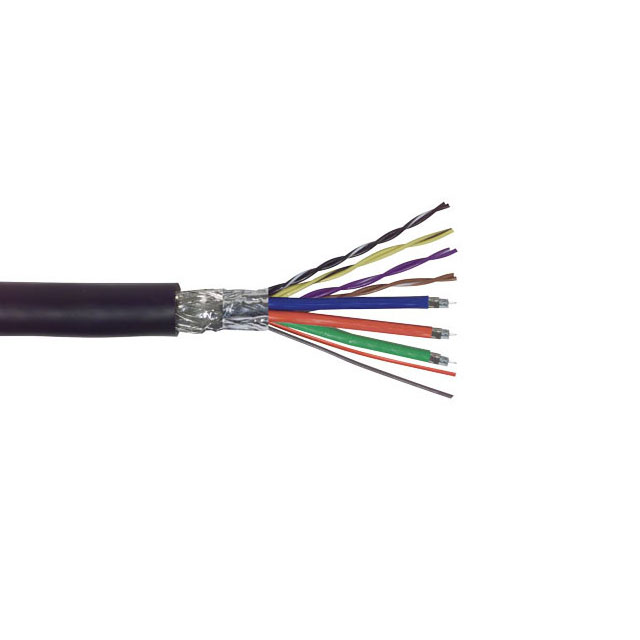

13 (5 Pair+3 Coax) Conductor Multi-Conductor Cable Black 24 AWG, 26 AWG, 28 AWG Foil, Braid 500.0' (152.4m)
Technical Specifications
Parameters and characteristics for this part
| Specification | CTL3VGA-500 |
|---|---|
| Cable Type | Conductor, Multi |
| Conductor Insulation | Foam Polyethylene (FPE), High Density Polyethylene (HDPE) |
| Conductor Material | Tinned, Copper |
| Conductor Strand | 7/0.0050, 7/0.0063 |
| Jacket (Insulation) Diameter | 0.362 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.065 in |
| Jacket Color | Black |
| Length | 500 ft |
| Number of Conductors | 13 |
| Number of Conductors - Coax | 3 |
| Number of Conductors - Pair | 5 |
| Operating Temperature | 80 °C |
| Shield Coverage | 85%, 100% |
| Shield Material | Aluminum, Tinned, Copper |
| Shield Type | Braid, Foil |
| Voltage | 30 V |
| Wire Gauge | 24 AWG, 28 AWG, 26 AWG |
