Description
General part information

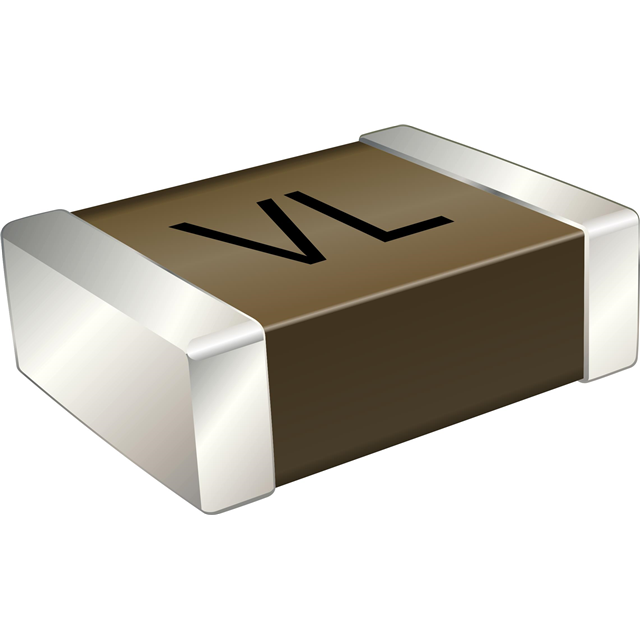

SAFC2220X7R502-102KNE-CT
1000 pF ±10% 250VAC Ceramic Capacitor X7R 2220 (5750 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | SAFC2220X7R502-102KNE-CT |
|---|---|
| Applications | Safety |
| Capacitance | 1000 pF |
| Features | High Voltage |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 2220 (5750 Metric) |
| Ratings | Y2, X1 |
| Size / Dimension Length | 0.22 in |
| Size / Dimension Width | 0.2 in |
| Temperature Coefficient | X7R |
| Thickness (Max) | 0.055 in |
| Tolerance | 10 % |
| Voltage - Rated | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
