LGJ12575TS-6R8N5R9-H
ObsoleteTDK Corporation
FIXED IND 6.8UH 5.9A 13.1MOHM SM
LGJ12575TS-6R8N5R9-H
ObsoleteTDK Corporation
FIXED IND 6.8UH 5.9A 13.1MOHM SM
Description
General part information
LGJ12575TS-6R8N5R9-H

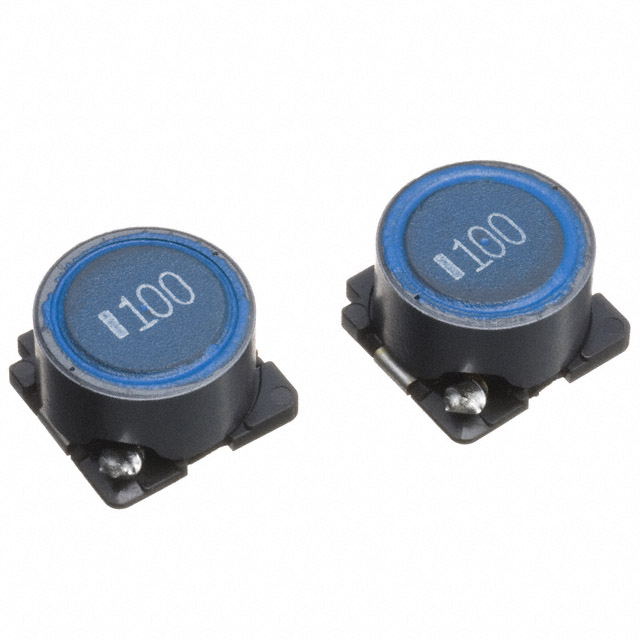

6.8 µH Shielded Drum Core, Wirewound Inductor 5.9 A 13.1mOhm Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | LGJ12575TS-6R8N5R9-H |
|---|---|
| Current - Saturation (Isat) | 7.2 A |
| Current Rating | 5.9 A |
| DC Resistance (DCR) | 13.1 mOhm |
| Height - Seated (Max) | 0.295 in |
| Inductance | 6.8 µH |
| Inductance Frequency - Test | 1 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension Length | 0.492 in |
| Size / Dimension Width | 0.492 in |
| Tolerance | 30 % |
| Type | Drum Core, Wirewound |
