PE44121
ActivePasternack
SMB JACK RIGHT ANGLE CONNECTOR S
PE44121
ActivePasternack
SMB JACK RIGHT ANGLE CONNECTOR S
Description
General part information
PE44121

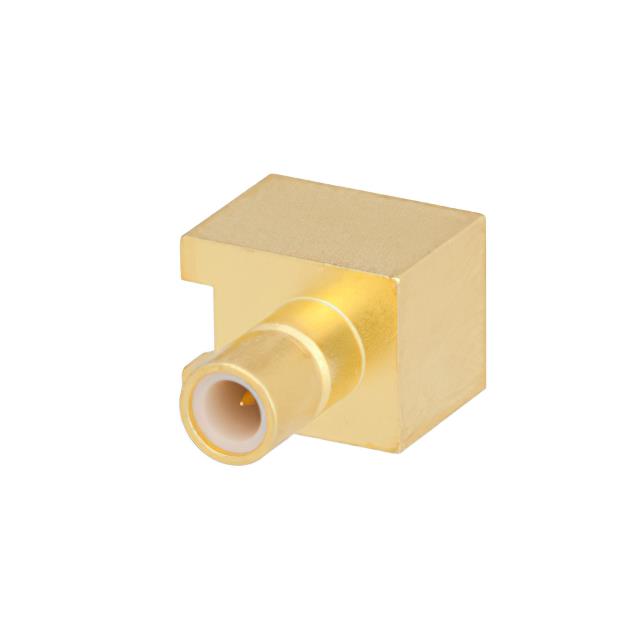

SMB Connector Jack, Female Socket 50 Ohms Surface Mount, Right Angle Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | PE44121 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | SMB |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Frequency - Max | 4 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohm |
| Mating Cycles | 500 cycles |
| Mounting Type | Right Angle, Surface Mount |
| Number of Ports | 1 |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Shield Termination | Solder |
| Voltage Rating | 335 V |
