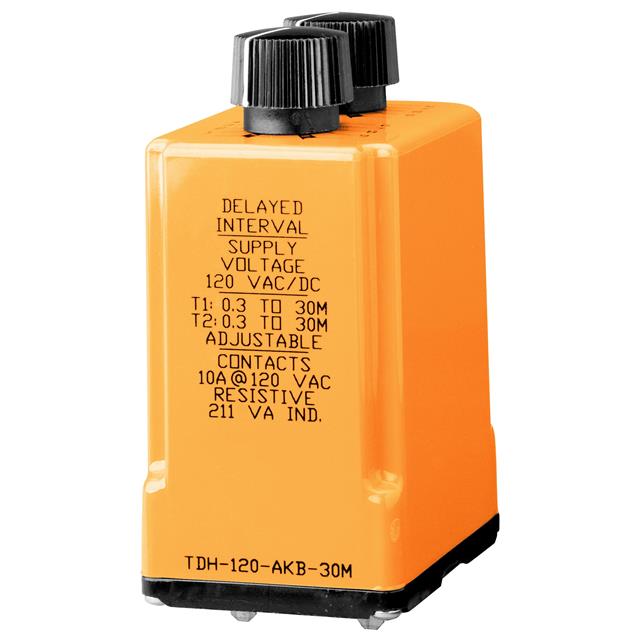

TDH-120-A-K-B-30M

Active

ATC-Diversified Electronics

RELAY TIME DELAY 30MIN 10A 250V

Search across all available documentation for this part.

Active

ATC-Diversified Electronics

RELAY TIME DELAY 30MIN 10A 250V

Technical Specifications

Parameters and characteristics for this part

RELAY TIME DELAY 30MIN 10A 250V

Part	Termination Style	Timing Adjustment Method	Mounting Type	Contact Rating @ Voltage	Delay Time [Min]	Delay Time [Max]	Circuit	Function	Relay Type	Timing Initiate Method	Voltage - Supply
ATC-Diversified Electronics TDH-120-A-K-B-30M	Plug In	Hand Dial	Socketable	10 A	18 Sec	30 Min	DPDT (2 Form C)	Interval	Mechanical Relay	Input Voltage	120 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 239.58

General part information

Interval Time Delay Relay DPDT (2 Form C) 18 Sec ~ 30 Min Delay 10A @ 250VAC/24VDC Socketable
