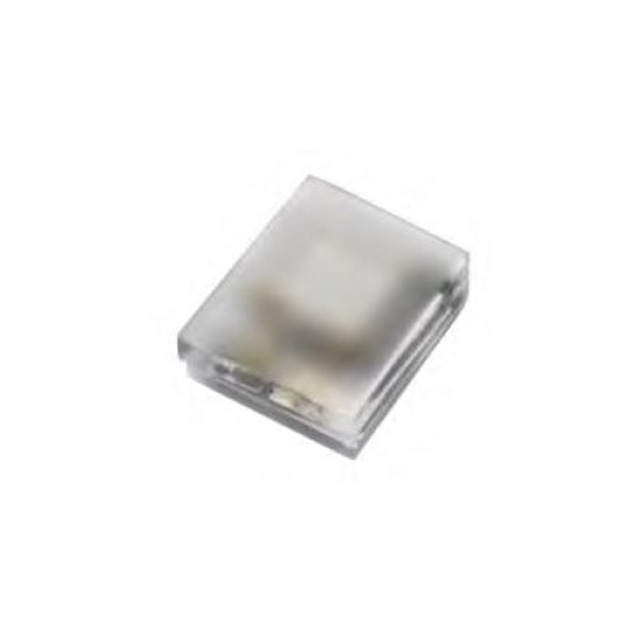

EAUVA2016GH5
UnknownEverlight Electronics Co Ltd
EMITTER UV 20MA SMD
EAUVA2016GH5
UnknownEverlight Electronics Co Ltd
EMITTER UV 20MA SMD
Description
General part information
EAUVA2016GH5
Ultraviolet (UV) Emitter 390nm ~ 400nm 3.3V 20mA 125° 2-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | EAUVA2016GH5 |
|---|---|
| Current - DC Forward (If) (Max) | 20 mA |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 110 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | Top View |
| Package / Case | No Lead, 2-SMD |
| Type | Ultraviolet (UV) |
| Viewing Angle | 125 ° |
| Voltage - Forward (Vf) (Typ) | 3.3 V |
| Wavelength (Max) | 400 nm |
| Wavelength (Min) | 390 nm |
