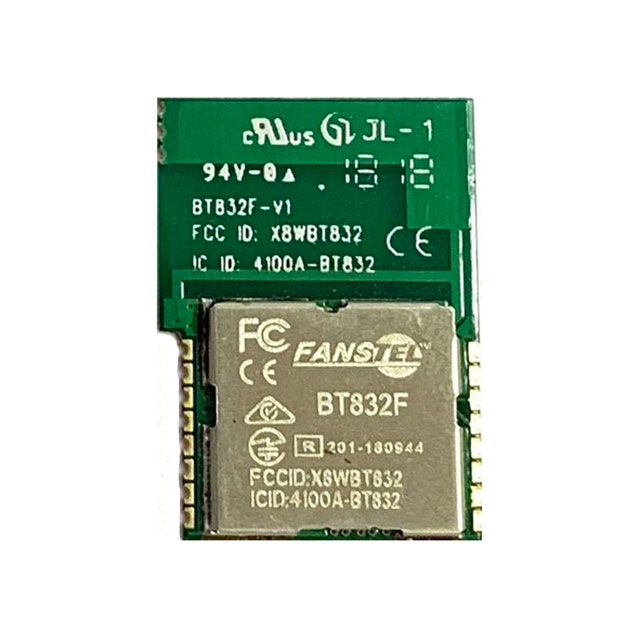

BT832F
ActiveFanstel Corp.
RF TXRX MOD BT TH SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BT832F
ActiveFanstel Corp.
RF TXRX MOD BT TH SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BT832F | BT832 Series |
|---|---|---|
| Antenna Type | Integrated, Trace | Antenna Not Included, U.FL, Integrated, Trace |
| Data Rate | 8 Mbps | 8 Mbps |
| For Use With/Related Products | - | BT832X, BT832A, BT832XE, BT832F, BT832AF, BT832 |
| Frequency | 2.4 GHz | 2.4 GHz |
| Memory Size | - | 24 - 192 kB |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 16-SMD Module | 16-SMD Module |
| Power - Output | 4 dBm | 4 - 20 dBm |
| Protocol | Bluetooth v5.0 | Bluetooth v5.0 |
| RF Family/Standard | Bluetooth | Bluetooth |
| Sensitivity | - | -105 dBm |
| Serial Interfaces | SPI, I2C, I2S, UART | UART, I2C, SPI, I2S |
| Supplied Contents | - | Board(s) |
| Type | - | Transceiver, Bluetooth® 5.x (BLE) |
| Utilized IC / Part | nRF52832 | nRF52832, nRF52810 |
| Voltage - Supply [Max] | 3.6 V | 3.6 V |
| Voltage - Supply [Min] | 1.7 V | 1.7 - 1.8 V |
BT832 Series
EVALUATION BOARD FOR BT832X BLUE
| Part | Type | Frequency | For Use With/Related Products | Supplied Contents | Mounting Type | Power - Output | Antenna Type | Voltage - Supply [Max] | Voltage - Supply [Min] | Data Rate | Package / Case | Protocol | RF Family/Standard | Operating Temperature [Max] | Operating Temperature [Min] | Sensitivity | Serial Interfaces | Utilized IC / Part | Memory Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Fanstel Corp. EV-BT832X | Bluetooth® 5.x (BLE), Transceiver | 2.4 GHz | BT832X | Board(s) | |||||||||||||||
Fanstel Corp. BT832XE | 2.4 GHz | Surface Mount | 20 dBm | Antenna Not Included, U.FL | 3.6 V | 1.8 V | 8 Mbps | 16-SMD Module | Bluetooth v5.0 | Bluetooth | 85 °C | -40 °C | -105 dBm | I2C, SPI, UART | nRF52832 | ||||
Fanstel Corp. EV-BT832A | Bluetooth® 5.x (BLE), Transceiver | 2.4 GHz | BT832A | Board(s) | |||||||||||||||
Fanstel Corp. EV-BT832XE | Bluetooth® 5.x (BLE), Transceiver | 2.4 GHz | BT832XE | Board(s) | |||||||||||||||
Fanstel Corp. BT832A | 2.4 GHz | Surface Mount | 4 dBm | Integrated, Trace | 3.6 V | 1.7 V | 8 Mbps | 16-SMD Module | Bluetooth v5.0 | Bluetooth | 85 °C | -40 °C | I2C, I2S, SPI, UART | nRF52810 | 24 kB, 192 kB | ||||
Fanstel Corp. BT832X | 2.4 GHz | Surface Mount | 20 dBm | Integrated, Trace | 3.6 V | 1.8 V | 8 Mbps | 16-SMD Module | Bluetooth v5.0 | Bluetooth | 85 °C | -40 °C | -105 dBm | I2C, SPI, UART | nRF52832 | ||||
Fanstel Corp. EV-BT832F | Bluetooth® 5.x (BLE), Transceiver | 2.4 GHz | BT832F | Board(s) | |||||||||||||||
Fanstel Corp. BT832F | 2.4 GHz | Surface Mount | 4 dBm | Integrated, Trace | 3.6 V | 1.7 V | 8 Mbps | 16-SMD Module | Bluetooth v5.0 | Bluetooth | 85 °C | -40 °C | I2C, I2S, SPI, UART | nRF52832 | |||||
Fanstel Corp. EV-BT832AF | Bluetooth® 5.x (BLE), Transceiver | 2.4 GHz | BT832AF | Board(s) | |||||||||||||||
Fanstel Corp. BT832AF | 2.4 GHz | Surface Mount | 4 dBm | Integrated, Trace | 3.6 V | 1.7 V | 8 Mbps | 16-SMD Module | Bluetooth v5.0 | Bluetooth | 85 °C | -40 °C | I2C, I2S, SPI, UART | nRF52810 | 24 kB, 192 kB |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 7.12 | |
| 10 | $ 6.53 | |||
| 25 | $ 5.94 | |||
| 100 | $ 5.34 | |||
| 250 | $ 5.22 | |||
| Digi-Reel® | 1 | $ 7.12 | ||
| 10 | $ 6.53 | |||
| 25 | $ 5.94 | |||
| 100 | $ 5.34 | |||
| 250 | $ 5.22 | |||
| Tape & Reel (TR) | 1000 | $ 5.22 | ||
Description
General part information
BT832 Series
Bluetooth Bluetooth v5.0 Transceiver Module 2.4GHz Integrated, Trace Surface Mount
