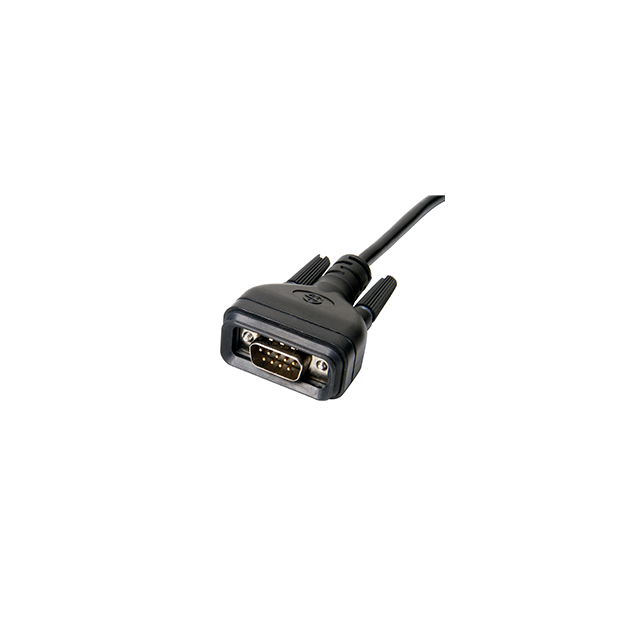

IPDSB-09-MWL-1M

Active

Sure-Seal

CABLE ASSY DB09 BLACK 1M

Search across all available documentation for this part.

Active

Sure-Seal

CABLE ASSY DB09 BLACK 1M

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	IPDSB-09-MWL-1M	IPDSB Series

1st Connector	Plug, Male Pins	Receptacle, Female Sockets, Plug, Male Pins
2nd Connector	Individual Wire Leads	Individual Wire Leads
Color	Black, Individual (Round)	Black, Individual (Round)
Contact Finish	Gold	Gold
Length [x]	1 m	1 m
Length [x]	3.28 ft	3.28 ft
Number of Positions	9	9 - 15
Shielding	Unshielded	Unshielded
Type	DB9	DB9, HD15

CABLE ASSY DB09 BLACK 1M

Part	Number of Positions	1st Connector	Shielding	2nd Connector	Type	Contact Finish	Length [x]	Length [x]	Color
Sure-Seal IPDSB-09-FWL-1M	9	Female Sockets, Receptacle	Unshielded	Individual Wire Leads	DB9	Gold	1 m	3.28 ft	Black, Individual (Round)
Sure-Seal IPDSB-09-MWL-1M	9	Plug, Male Pins	Unshielded	Individual Wire Leads	DB9	Gold	1 m	3.28 ft	Black, Individual (Round)
Sure-Seal IPDSB-HD15-MWL-1M	15	Plug, Male Pins	Unshielded	Individual Wire Leads	HD15	Gold	1 m	3.28 ft	Black, Individual (Round)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 11.37

General part information

D-Sub Cable Assembly DB9 Black, Individual (Round) 3.28' (1.00m) Plug, Male Pins to Individual Wire Leads Unshielded
