Description
General part information

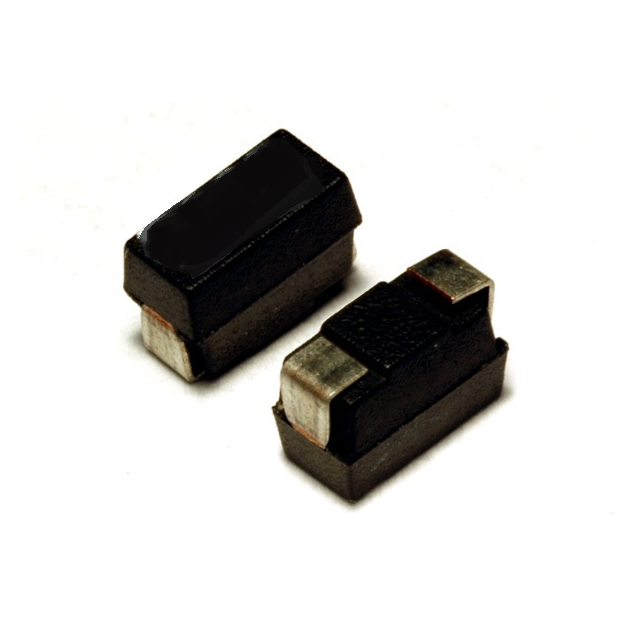

RW2S0CBR499F
499 mOhms ±1% 2W Chip Resistor 4122 J-Lead Wirewound
Technical Specifications
Parameters and characteristics for this part
| Specification | RW2S0CBR499F |
|---|---|
| Composition | Wirewound |
| Height - Seated (Max) | 0.227 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 4122 J-Lead |
| Package Name | 4122 |
| Power (Watts) | 2 w |
| Resistance | 499 mOhms |
| Size / Dimension Length | 0.407 in |
| Size / Dimension Width | 0.226 in |
| Supplier Device Package | 4122 |
| Temperature Coefficient | 90 ppm/°C |
| Tolerance | 1 % |
