2J4A86PGFA
Active2J Antennas
CONDOR 5IN1 5GNR/4G/3G/2G MIMO W
2J4A86PGFA
Active2J Antennas
CONDOR 5IN1 5GNR/4G/3G/2G MIMO W
Description
General part information
2J4A86PGFA

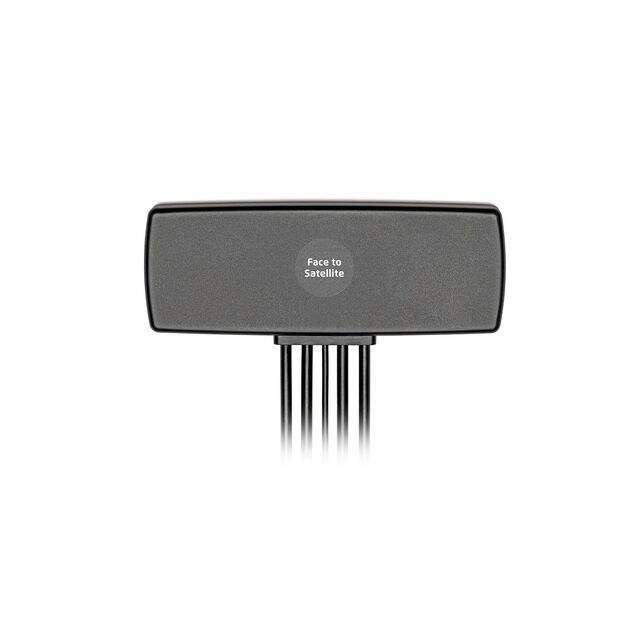

RF ANTENNA 2G, 3G, 4G, 5G, Bluetooth, Galileo, GLONASS, GNSS, GPS, ISM, Zigbee™ Module RP-SMA Male, SMA Male Adhesive
Technical Specifications
Parameters and characteristics for this part
| Specification | 2J4A86PGFA |
|---|---|
| Antenna Type | Module |
| Applications | GLONASS, ISM, Zigbee™, 5G, GPS, Galileo, Bluetooth, GNSS, 4G, 3G, 2G |
| Features | Cable, Filter, 3m |
| Frequency (Center/Band) | 5.422GHz, 5.537GHz, 788.5MHz, 4.15GHz, 1.575GHz, 1.602GHz, 2.45GHz, 2.058GHz |
| Frequency (Center/Band) - 1 | 788.5 MHz |
| Frequency (Center/Band) - 2 | 1.575 GHz |
| Frequency (Center/Band) - 3 | 1.602 GHz |
| Frequency (Center/Band) - 4 | 2.058 GHz |
| Frequency (Center/Band) - 5 | 2.45 GHz |
| Frequency (Center/Band) - 6 | 4.15 GHz |
| Frequency (Center/Band) - 7 | 5.422 GHz |
| Frequency (Center/Band) - 8 | 5.537 GHz |
| Frequency Group | Wide Band |
| Frequency Range (Band 1) Maximum | 960 MHz |
| Frequency Range (Band 1) Minimum | 617 MHz |
| Frequency Range (Band 2) Maximum | 1.606 GHz |
| Frequency Range (Band 2) Minimum | 1.427 GHz |
| Frequency Range (Band 3) Maximum | 2.49 GHz |
| Frequency Range (Band 3) Minimum | 1.598 GHz |
| Frequency Range (Band 4) Maximum | 2.69 GHz |
| Frequency Range (Band 4) Minimum | 2.41 GHz |
| Frequency Range (Band 5) Maximum | 5 GHz |
| Frequency Range (Band 5) Minimum | 3.3 GHz |
| Frequency Range (Band 6) Maximum | 5.925 GHz |
| Frequency Range (Band 6) Minimum | 4.92 GHz |
| Frequency Range (Band 7) Maximum | 5.925 GHz |
| Frequency Range (Band 7) Minimum | 5.15 GHz |
| Gain | 1.2 dBi, 1.7 dBi, 0.6 dBi, 4.9 dBi, 0.8 dBi, 28 dBi, -1.4 dBi |
| Height (Max) | 0.669 in |
| Ingress Protection | IP67, IP69 |
| Mounting Type | Adhesive |
| Number of Bands | 8 |
| Power - Max | 35 VA |
| Return Loss | -7.8dB, -7dB, -15dB, -4.3dB, -5.1dB, -9.8dB |
| Return Loss | -9.8 dB, -5.1 dB, -15 dB, -7 dB, -4.3 dB, -7.8 dB |
| RF Family/Standard | Navigation, 802.15.4, Bluetooth, Cellular, General ISM, WiFi |
| Termination | SMA Male, RP-SMA Male |
| VSWR | 2, 2.7, 4.2, 3.8, 2.4, 1.4, 2.9 |
