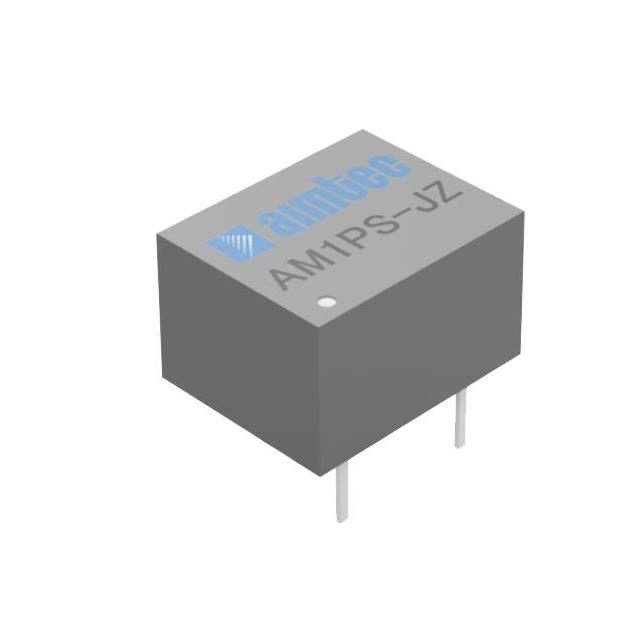

AM1PS-1205SH30JZ
Isolated Module DC DC Converter 1 Output 5V 200mA 21.6V - 26.4V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | AM1PS-1205SH30JZ |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cURus |
| Current - Output (Max) | 200 mA |
| Efficiency | 80 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 8-DIP Module |
| Power (Watts) | 1 W |
| Size / Dimension Height | 0.32 in |
| Size / Dimension Length | 0.5 in |
| Size / Dimension Width | 0.4 in |
| Standard Number | 62368-1 |
| Type | Isolated Module |
| Voltage - Input (Max) | 26.4 V |
| Voltage - Input (Min) | 21.6 V |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 5 V |
