Part	Insulation	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Contact Material	Termination	Terminal Type	Tab Thickness	Length - Overall	Tab Width	Tab Length	Gender	Mounting Type	Color	Contact Finish	Terminal Angle	Insulation Diameter (Min)	Insulation Diameter (Max)
TE Connectivity AMP Connectors 42239-4	Non-Insulated	18 AWG	14 AWG	Phosphor Bronze	Crimp	Standard	0.032 in	0.468 in	0.205 in	0.25 in	Female	Free Hanging (In-Line)
TE Connectivity AMP Connectors 640174-1	Non-Mating End Insulated	22 AWG	18 AWG	Brass	Crimp	Standard	0.02 in	0.8 in	0.205 in	0.25 in	Female	Free Hanging (In-Line)	Black Stripe Red	Tin
TE Connectivity AMP Connectors 8-640913-1	Non-Mating End Insulated	16 AWG	14 AWG	Brass	Crimp	Standard	0.02 in	0.8 in	0.205 in	0.25 in	Female	Free Hanging (In-Line)	Blue	Tin
TE Connectivity AMP Connectors 42199-2	Non-Insulated	20.5 AWG	16 AWG	Brass	Crimp	Angled Flag	0.02 in		0.205 in	0.25 in	Female	Free Hanging (In-Line) Right Angle		Tin	90 °

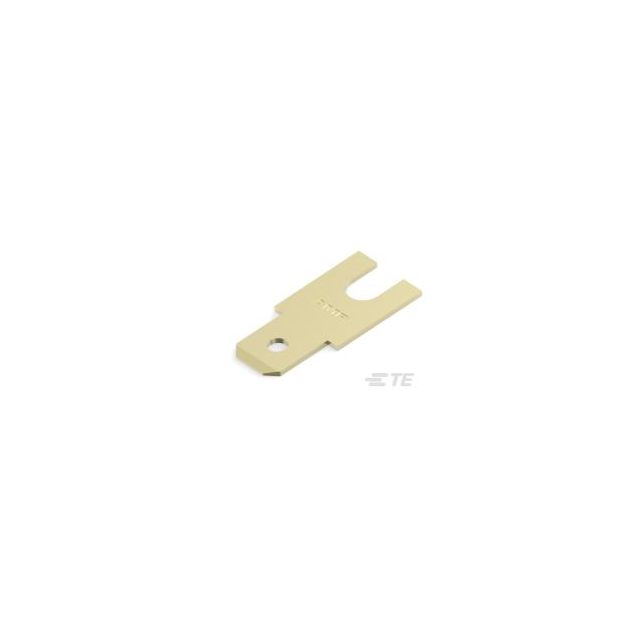

TE Connectivity AMP Connectors 61836-1	Non-Insulated			Brass	Rivet Screw Stud	Angled	0.032 in		0.205 in		Male	Board Chassis			90 °
TE Connectivity AMP Connectors 62531-1	Non-Insulated	18 AWG	14 AWG	Brass	Crimp	Standard	0.02 in		0.205 in	0.25 in	Male	Free Hanging (In-Line)		Tin		0.12 in	0.15 in
TE Connectivity AMP Connectors 170181-2	Non-Insulated	22 AWG	18 AWG	Brass	Crimp	Standard	0.031 in	0.618 in	0.205 in	0.252 in	Female	Free Hanging (In-Line)		Tin
TE Connectivity AMP Connectors 42198-2	Non-Insulated	22 AWG	18 AWG	Brass	Crimp	Standard	0.02 in	0.616 in	0.205 in	0.25 in	Female	Free Hanging (In-Line)		Tin		0.085 in	0.125 in
TE Connectivity AMP Connectors 42781-2	Non-Insulated	18 AWG	14 AWG	Brass	Crimp	Standard	0.02 in	0.615 in	0.205 in	0.25 in	Female	Free Hanging (In-Line)		Tin		0.13 in	0.18 in
TE Connectivity AMP Connectors 42197-2	Non-Insulated	22 AWG	18 AWG	Brass	Crimp	Standard	0.02 in	0.468 in	0.205 in	0.246 in	Female	Free Hanging (In-Line)		Tin
