H32A-TS-M25-T1319320125-000

T1319320125-000

Active
TE Connectivity AMP Connectors

HEAVY DUTY CONN, 2 LEVER, SIZE H32A ROHS COMPLIANT: YES

Find alt
H32A-TS-M25-T1319320125-000

T1319320125-000

Active
TE Connectivity AMP Connectors

HEAVY DUTY CONN, 2 LEVER, SIZE H32A ROHS COMPLIANT: YES

Find alt

Description

General part information

HDC IP65 Series

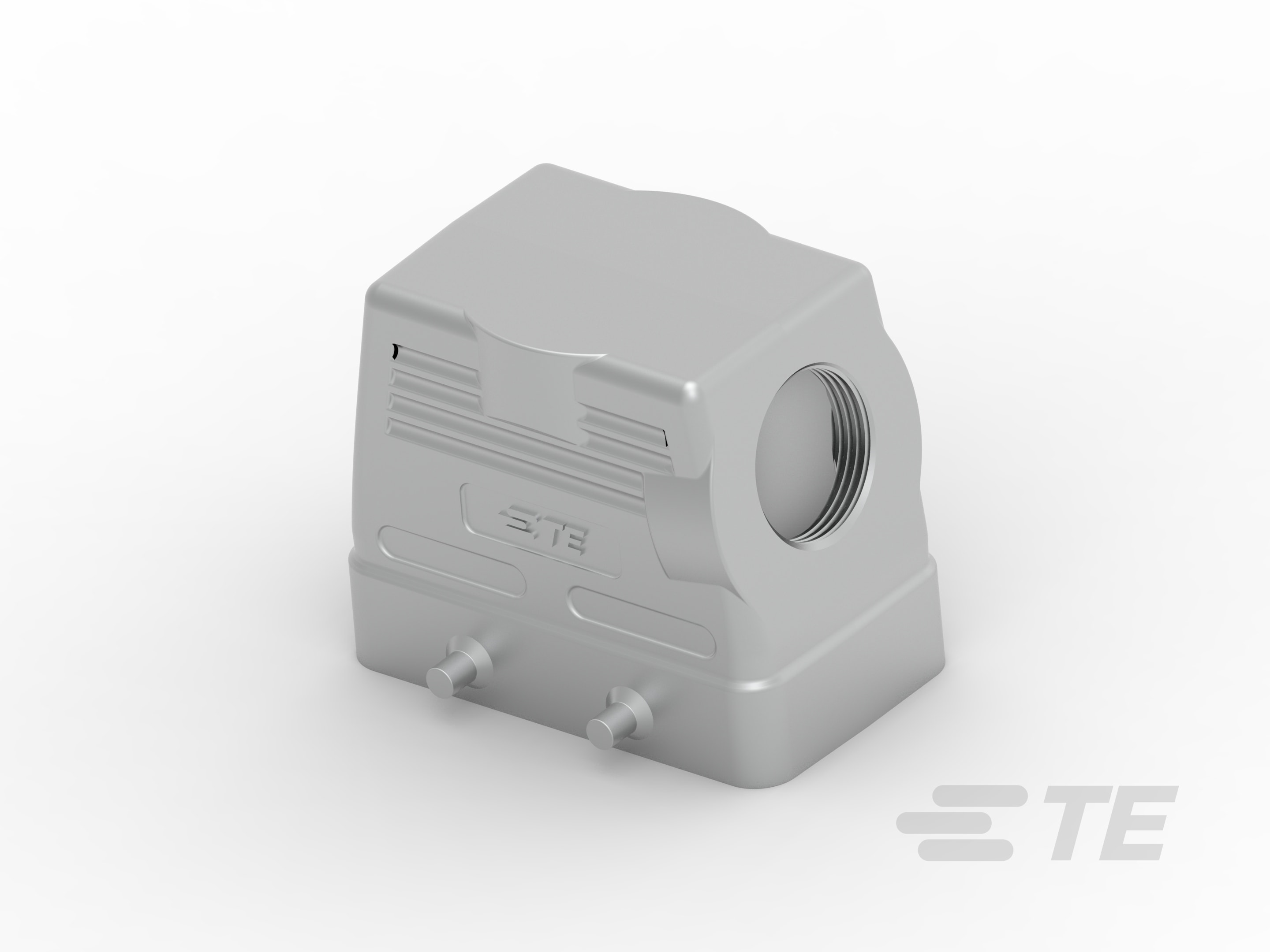

Heavy Duty Connector Hood, Side Entry, Locking, Sealable, HDC IP65

Technical Specifications

Parameters and characteristics for this part

SpecificationT1319320125-000
Connector TypeHood
Housing ColorGray
Housing FinishPowder Coated
Housing MaterialAluminum Alloy, Die Cast
Ingress Protection DescriptionDust Tight, Water Resistant
Ingress Protection IP RatingIP65
Lock LocationLocking Clip (2) on Base Bottom
Operating Temperature (Max)125 °C
Operating Temperature (Min)-40 °C
SizeH32A
Size / Dimension Height2.992 in
Size / Dimension Length3.228 in
Size / Dimension Width2.205 in
StyleSide Entry
Thread SizeM25
