ANT-GNFPC-SHL1150UF
ActiveTE Connectivity AMP Connectors

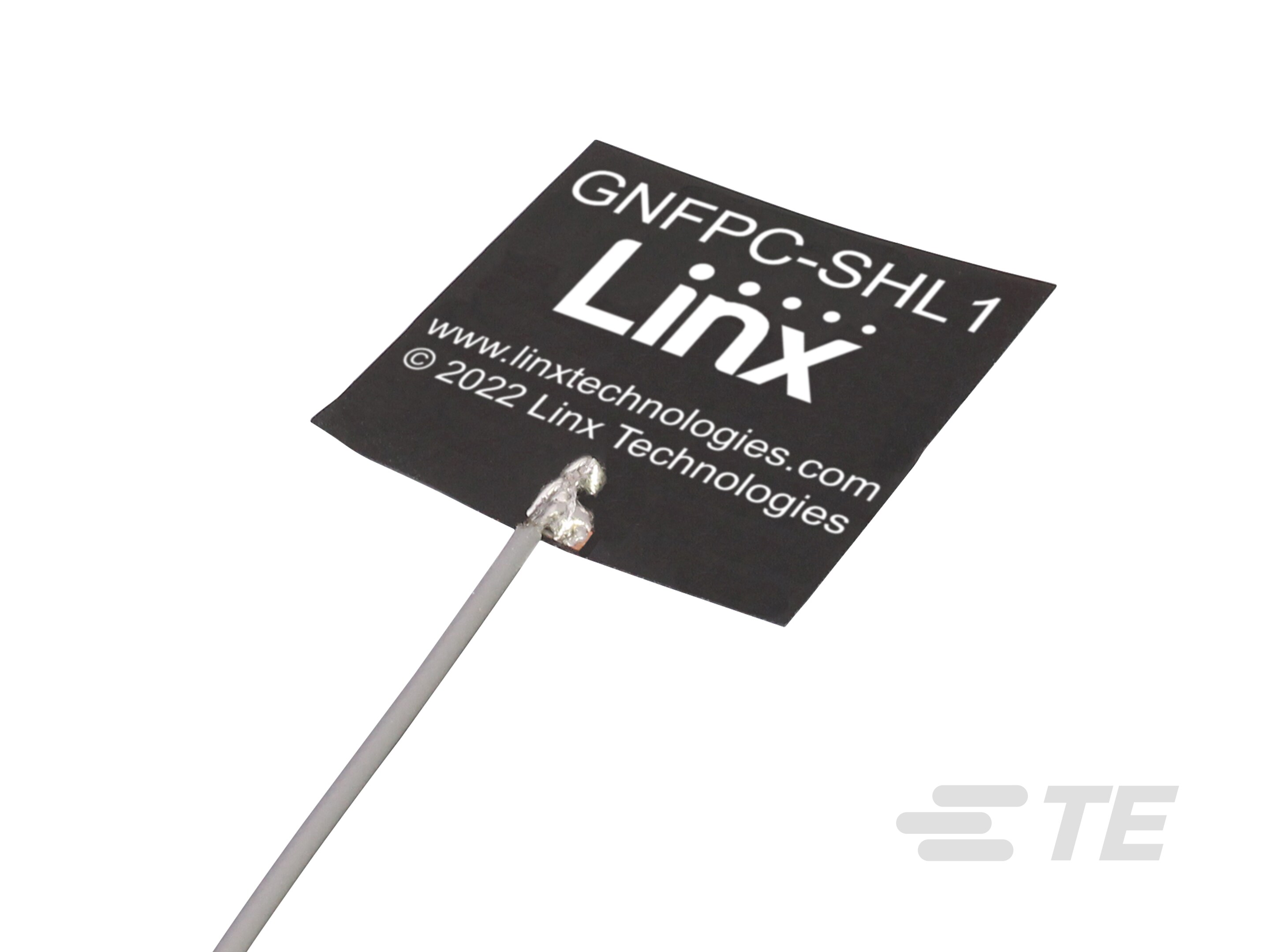

ANTENNA GNSS FPC SH L1 25X25 150 UFL
ANT-GNFPC-SHL1150UF
ActiveTE Connectivity AMP Connectors
ANTENNA GNSS FPC SH L1 25X25 150 UFL
Description
General part information
ANT-GNFPC-SHL1150UF
Flexible PCB (FPC) Antenna, Multi Band, GNSS / GPS, Internal/Embedded Mount, Adhesive Mount, MHF1 / U.FL / UMCC, Omnidirectional, Single Port
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT-GNFPC-SHL1150UF |
|---|---|
| Antenna Type | Flat Patch |
| Applications | GLONASS, GNSS, Galileo, BEIDOU, GPS |
| Features | Cable, 150mm |
| Frequency (Center/Band) | 1.575GHz, 1.602GHz, 1.561GHz, 1.601GHz |
| Frequency (Center/Band) - 1 | 1.561 GHz |
| Frequency (Center/Band) - 2 | 1.575 GHz |
| Frequency (Center/Band) - 3 | 1.602 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 2 GHz |
| Frequency Group Minimum (UHF) | 1 GHz |
| Frequency Range (Max) | 1.606 GHz |
| Frequency Range (Min) | 1.559 GHz |
| Gain | 2.6 dBi, 3.2 dBi |
| Height (Max) | 0.004 in |
| Mounting Type | Adhesive |
| Number of Bands | 4, 3 |
| Power - Max | 2 VA |
| RF Family/Standard | Navigation |
| Termination | U.FL, MHF1 |
| VSWR | 1.6, 1.9 |
| VSWR Maximum | 1.9 |
| VSWR Minimum | 1.6 |
