63132-3
ActiveTE Connectivity AMP Connectors
CONN MAG TERM 27-30AWG QC 0.250
63132-3
ActiveTE Connectivity AMP Connectors
CONN MAG TERM 27-30AWG QC 0.250
Description
General part information
63132-3

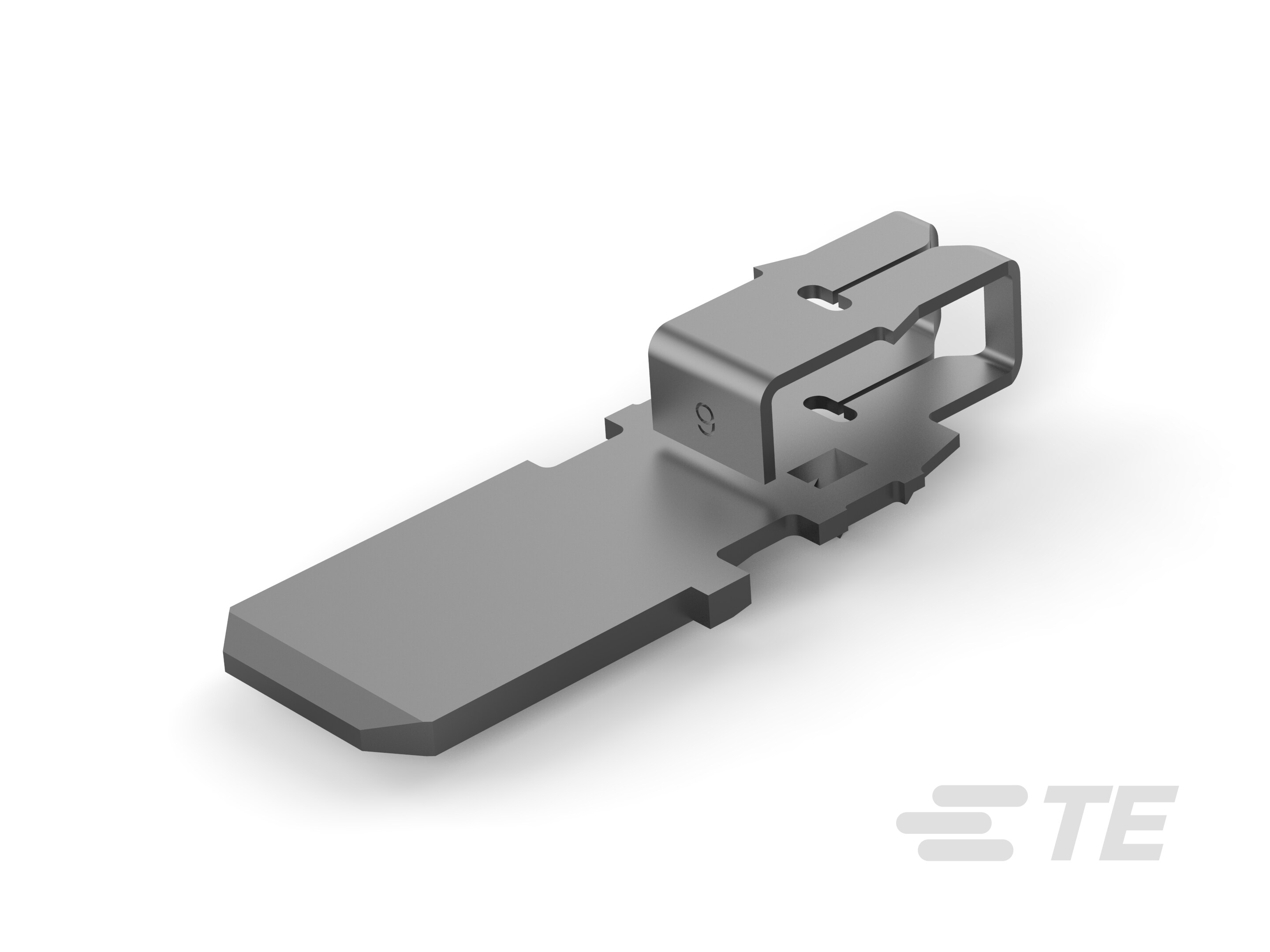

Tab, 6.35 mm [.25 in] Tab Width, 28 – 25 AWG Aluminum Wire, .08 – .16 mm Aluminum Wire, .25 – .36 mm Magnet Wire, MAG-MATE, Magnet Wire Terminals
Technical Specifications
Parameters and characteristics for this part
| Specification | 63132-3 |
|---|---|
| Features | QC .250 |
| Size | 3 |
| Style | 250 |
| Terminal Type | Box IDC |
| Termination | Quick Connect |
| Wire Gauge (AWG) (Max) | 30 AWG |
| Wire Gauge (AWG) (Min) | 27 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
MAG-MATE Standard Series .300 Box Height Special Latch Type Terminal
Magnet Wire Terminals & Splices
Datasheet
Product Specification - MAG-MATE Standard Series 187 and 300 Terminals
Application Specification - MAG-MATE Standard .300 Box Height Terminal with Special Latch Type
ENG_CD_63132_G2.pdf
63132-3 | Datasheet
