BL23E48-02-HP50
ActiveLin Engineering

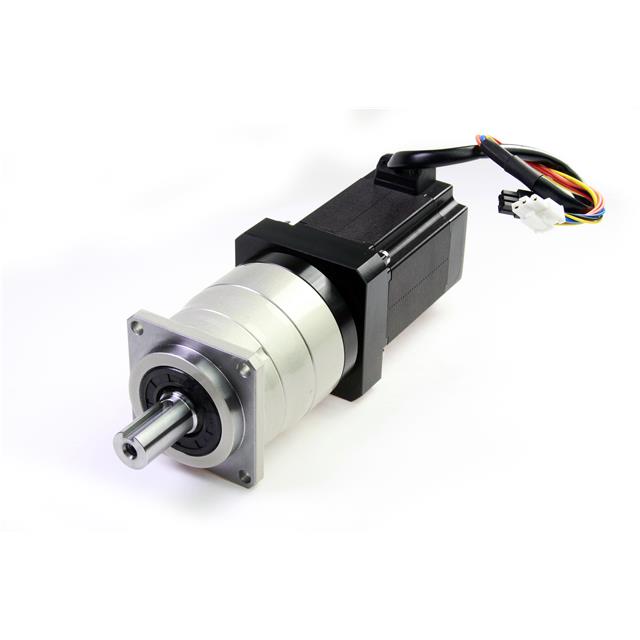

NEMA 23 - 3 STACK BLDC + 50:1
BL23E48-02-HP50
ActiveLin Engineering
NEMA 23 - 3 STACK BLDC + 50:1
Description
General part information
BL23E48-02-HP50
DC Motor Gearmotor 80 RPM 180W 48VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | BL23E48-02-HP50 |
|---|---|
| Diameter - Shaft | 0.63 in |
| Features | Key |
| Function | Gearmotor |
| Length - Shaft and Bearing | 1.16 in |
| Mounting Hole Spacing | 1.949 in |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -20 °C |
| Power - Rated | 180 W |
| RPM | 80 RPM |
| Size / Dimension Length | 2.21 in |
| Size / Dimension Shape | Square |
| Size / Dimension Width | 2.21 in |
| Termination Style | Connector |
| Torque - Max Momentary (mNm) | 36530 mNm |
| Torque - Max Momentary (oz-in) | 25174.4 oz-in |
| Torque - Rated (mNm) | 18265 mNm |
| Torque - Rated (oz-in) | 12587.2 oz-in |
| Type | DC Motor |
| Voltage - Rated | 48 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
