X1005619-4GDSMB

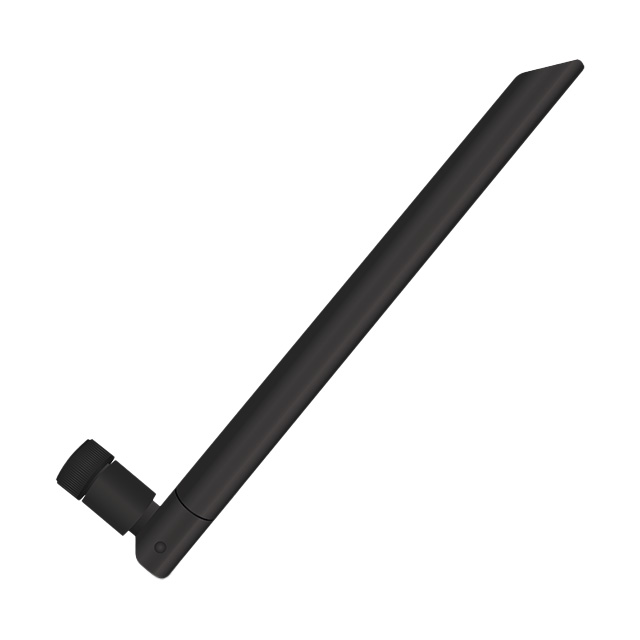

RF ANTENNA 4G, LTE Whip, Straight SMA Male Connector Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | X1005619-4GDSMB |
|---|---|
| Antenna Type | Straight, Whip |
| Applications | LTE, 4G |
| Frequency (Center/Band) | 880MHz, 749MHz, 2.205GHz |
| Frequency Group | Wide Band |
| Frequency Range (Band 1) Maximum | 800 MHz |
| Frequency Range (Band 1) Minimum | 698 MHz |
| Frequency Range (Band 2) Maximum | 960 MHz |
| Frequency Range (Band 2) Minimum | 800 MHz |
| Frequency Range (Band 3) Maximum | 2.7 GHz |
| Frequency Range (Band 3) Minimum | 1.71 GHz |
| Gain | 1.8 dBi, 5.2 dBi |
| Height (Max) | 7.008 in |
| Mounting Type | Connector Mount |
| Number of Bands | 3 |
| Power - Max | 5 VA |
| Return Loss | 3dB, 2.5dB, 13.5dB |
| Return Loss | 2.5 dB, 3 dB, 13.5 dB |
| RF Family/Standard | Cellular |
| Termination Type | SMA Male |
