Description
General part information

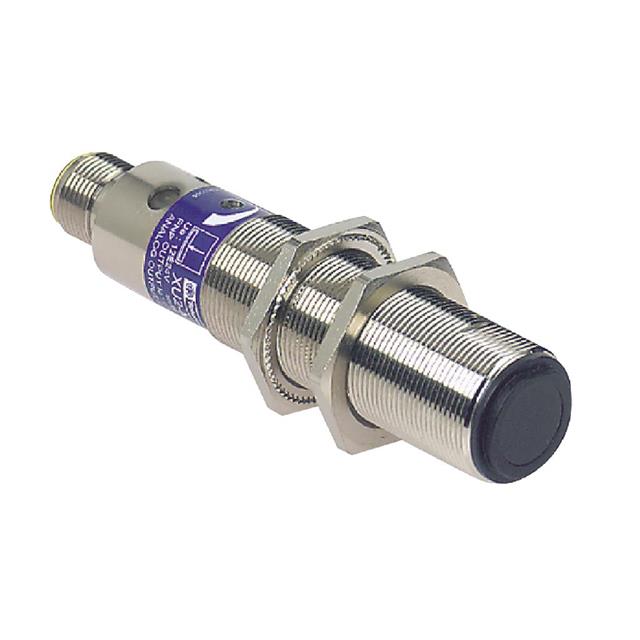

XU2M18MB230K
Through-Beam Optical Sensor 590.551" (15m) SCR, NC
Technical Specifications
Parameters and characteristics for this part
| Specification | XU2M18MB230K |
|---|---|
| Adjustment Type | Adjustable |
| Connection Method | UNF, Connector |
| Ingress Protection | IP67 |
| Light Source | Red LED, Yellow LED |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -25 °C |
| Output Configuration | NC, SCR |
| Response Time | 20 ms |
| Sensing Distance | 590.551 " |
| Sensing Method | Through-Beam |
| Voltage - Supply (Maximum) | 240 VAC |
| Voltage - Supply (Minimum) | 24 VAC |
