Description
General part information

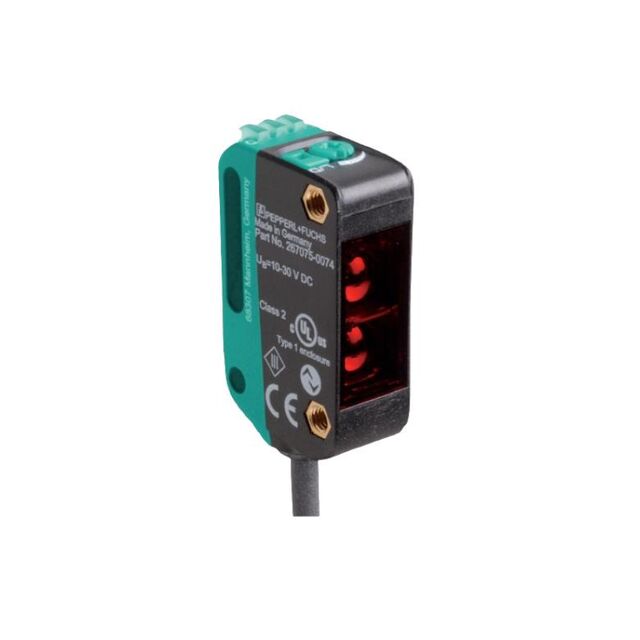

OBT150-R100-2EP1-IO
Background Suppression Optical Sensor 0.197" ~ 5.906" (5mm ~ 150mm) Push-Pull, NPN/PNP - Dark-ON/Light-ON
Technical Specifications
Parameters and characteristics for this part
| Specification | OBT150-R100-2EP1-IO |
|---|---|
| Adjustment Type | Adjustable |
| Cable Length | 78.74 in |
| Connection Method | Cable |
| Ingress Protection | IP69K |
| Light Source | Yellow LED |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -40 °C |
| Output Configuration | PNP - Dark-ON, Push-Pull, Light-ON, NPN |
| Response Time | 1 ms |
| Sensing Distance Maximum | 5.906 " |
| Sensing Distance Minimum | 0.197 " |
| Sensing Method | Background Suppression |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
