61336-1
ActiveTE Connectivity AMP Connectors
RING TONGUE TERMINAL, 3/8", 14 AWG, 2.08 MM²
61336-1
ActiveTE Connectivity AMP Connectors
RING TONGUE TERMINAL, 3/8", 14 AWG, 2.08 MM²
Description
General part information
61336-1

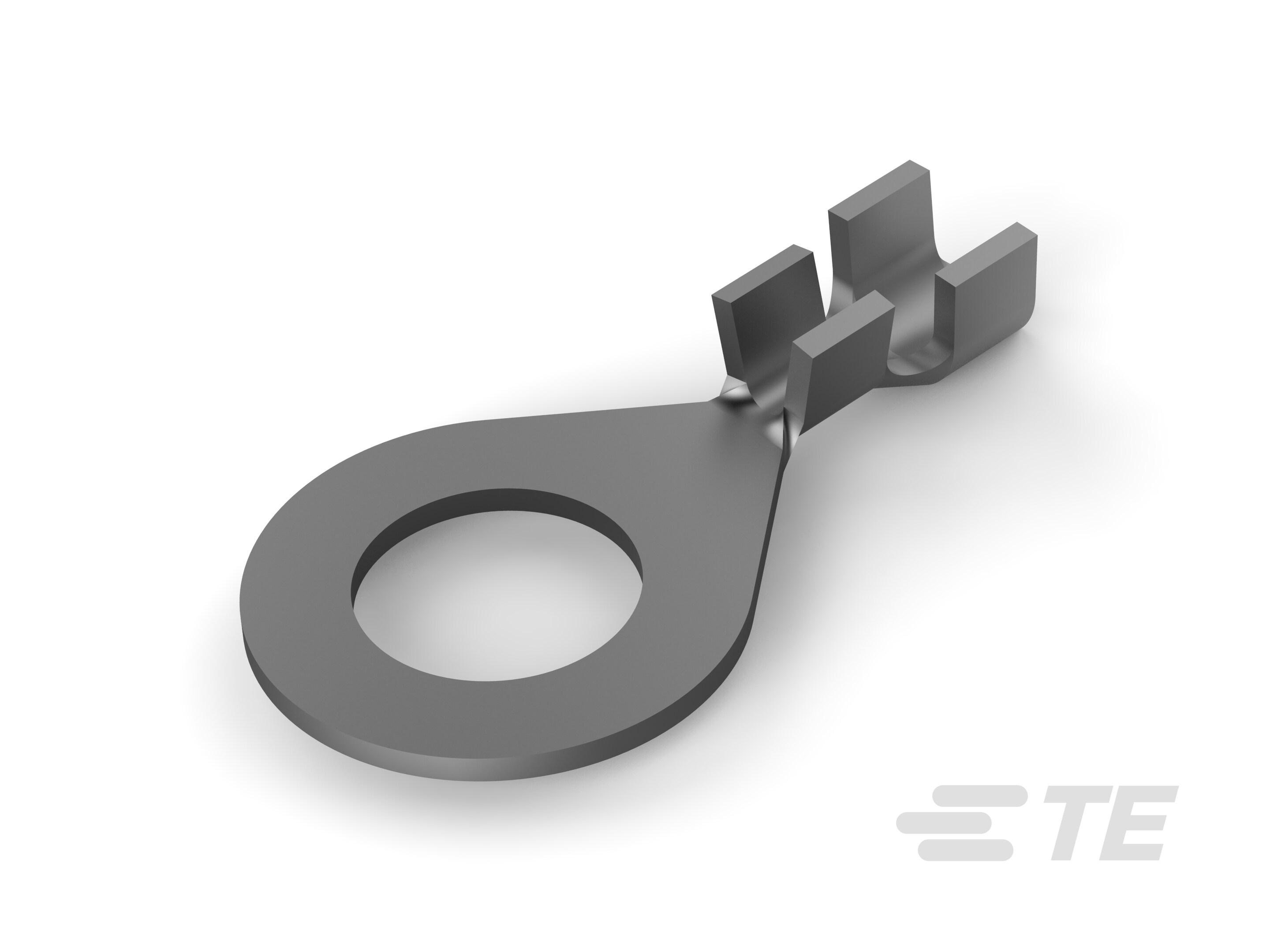

Closed Ring Tongue Terminal, 16 – 14 AWG, 3/8 Stud, 9.53 mm [.375 in] Stud Diameter, Open Barrel, Straight, Tin Plating, Uninsulated
Technical Specifications
Parameters and characteristics for this part
| Specification | 61336-1 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Insulation | Non-Insulated |
| Length - Overall | 1.245 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 0.375 in |
| Stud/Tab Size | 3 Stud, 8 Stud |
| Terminal Type | Oval |
| Termination | Crimp |
| Thickness | 0.04 in |
| Width - Outer Edges | 0.687 in |
| Wire Gauge (AWG) (Max) | 16 AWG |
| Wire Gauge (AWG) (Min) | 14 AWG |
