119159005101916
ActiveKYOCERA AVX

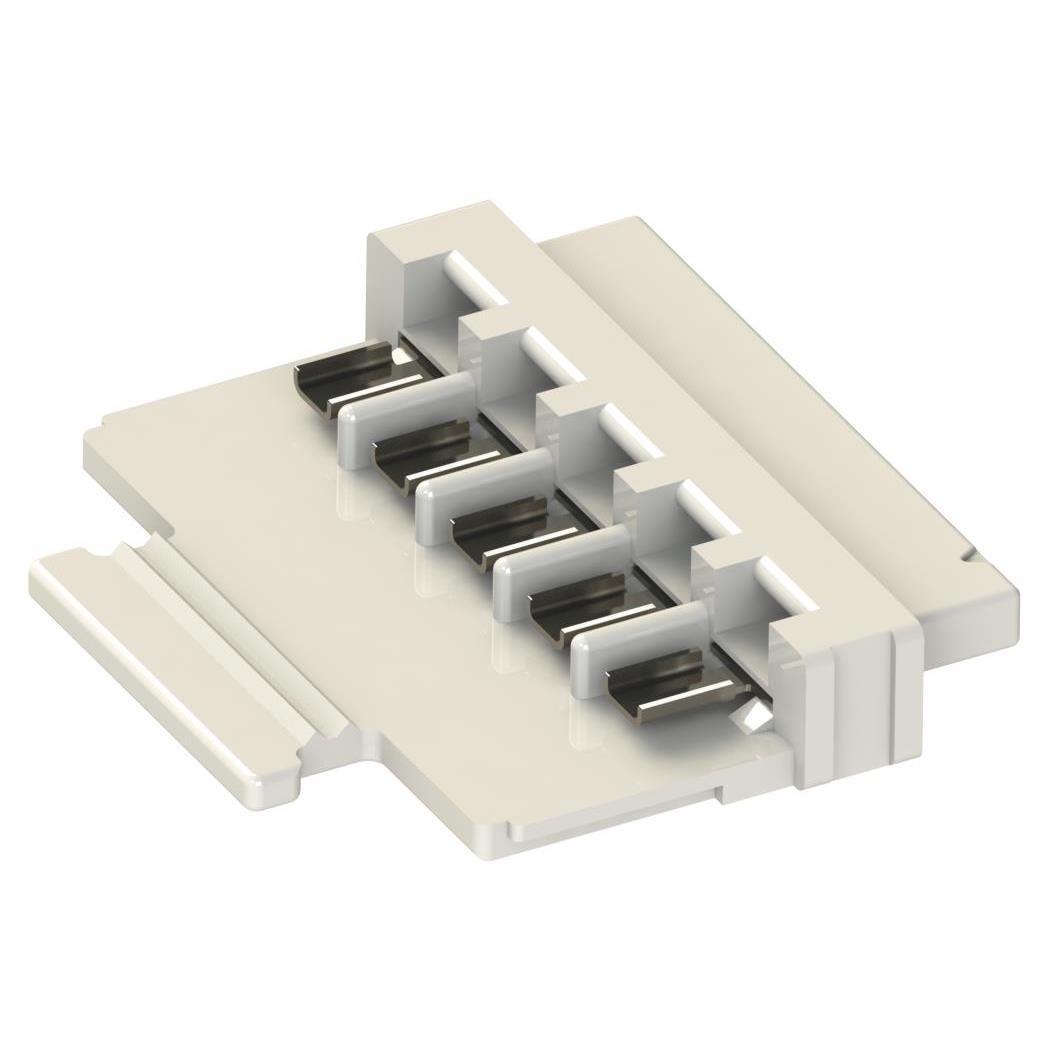

WIRED PLUG 9159 5POS 3MM PITCH U
119159005101916
ActiveKYOCERA AVX
WIRED PLUG 9159 5POS 3MM PITCH U
Description
General part information
119159005101916
SSL Connector 5 Position Plug Board to Cable/Wire 0.118" (3.00mm) Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | 119159005101916 |
|---|---|
| Connector Type | Plug |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Current Rating | 5 A |
| Housing Color | White |
| Housing Material | PA46, Polyamide, Nylon 4/6 |
| Mating Cycles | 10 cycles |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 5 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.118 in |
| Style | Cable/Wire, Board |
| Termination | Solder Cup |
| Voltage Rating | 125 V |
