2106112-6
ActiveTE Connectivity AMP Connectors

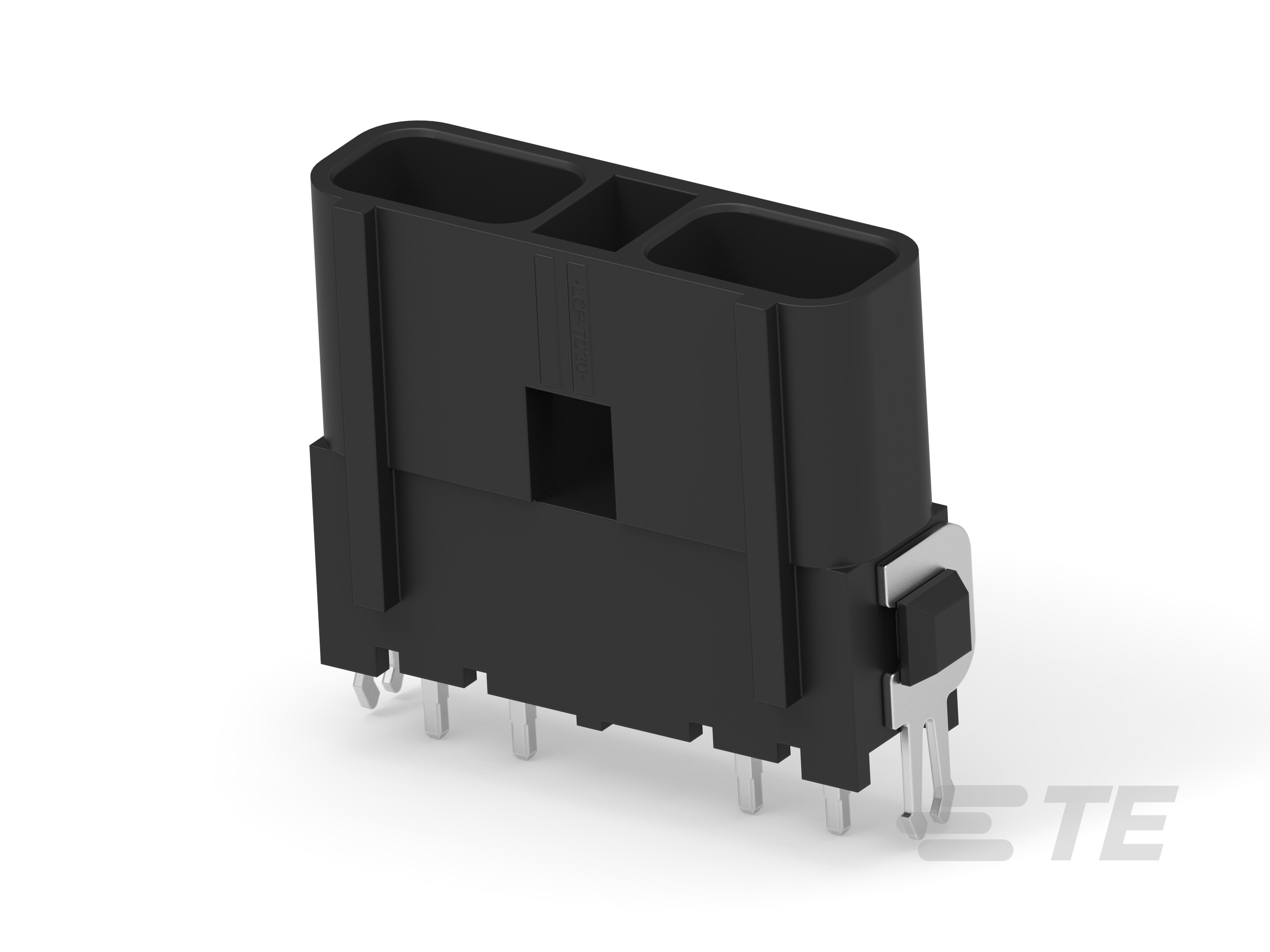

ASSEMBLY, VERTICAL TH HEADER, 4-POSITION
2106112-6
ActiveTE Connectivity AMP Connectors
ASSEMBLY, VERTICAL TH HEADER, 4-POSITION
Description
General part information
SlimSeal Connectors Headers Series
Wire-to-Wire, 4 Position, .14 mm [3.5 in] Centerline, Sealable, Printed Circuit Board, SlimSeal Connectors Headers, Plug & Socket Lighting Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | 2106112-6 |
|---|---|
| Connector Type | Header, Male Pins |
| Contact Finish | Tin |
| Contact Material | Brass |
| Current Rating | 5 A, 3.5 A |
| Fastening Type | Latch Lock |
| Features | Board Lock |
| Housing Color | Black |
| Housing Material | Liquid Crystal Polymer, LCP |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Mating Cycles | 30 cycles |
| Mounting Type | Through Hole |
| Number of Positions | 4 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.138 in |
| Style | Cable/Wire, Board |
| Termination | Solder |
| Voltage Rating | 400 V |
