LCCA30324-FT3
ActivePasternack

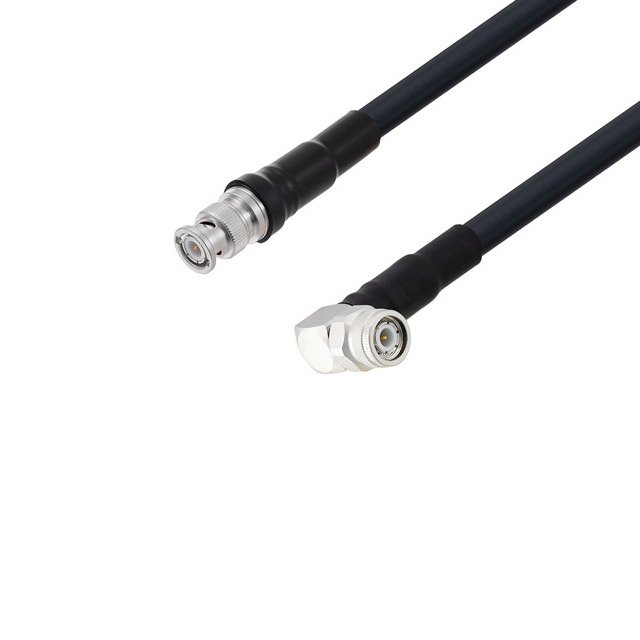

BNC MALE TO TNC MALE RIGHT ANGLE
LCCA30324-FT3
ActivePasternack
BNC MALE TO TNC MALE RIGHT ANGLE
Description
General part information
LCCA30324-FT3
Cable Assembly Coaxial BNC to TNC LMR 400 DB 36.00" (914.40mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | LCCA30324-FT3 |
|---|---|
| 1st Connector | BNC Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | Right Angle, TNC Plug |
| 2nd Connector Mounting Type | Right Angle, Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | LMR DB |
| Cable Type Size | 400 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 6000 MHz |
| Length | 36 in |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | BNC, TNC |
