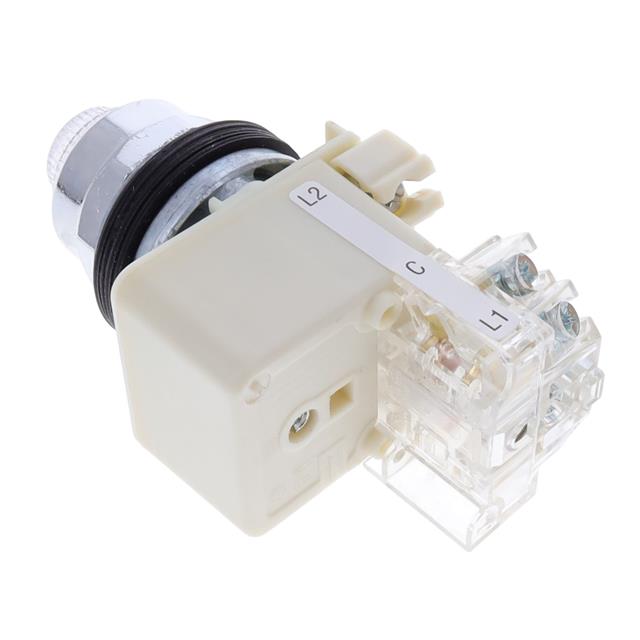

9001KT35C31
ObsoleteSCHNEIDER ELECTRIC
30MM PTT PILOT LIGHT, 24-28VAC/D
9001KT35C31
ObsoleteSCHNEIDER ELECTRIC
30MM PTT PILOT LIGHT, 24-28VAC/D
Description
General part information
9001KT35C31
Panel Indicator 24V ~ 28V Screw Terminal
Technical Specifications
Parameters and characteristics for this part
| Specification | 9001KT35C31 |
|---|---|
| Ingress Protection | 13, 12, 4, 2, 6, 1, 3, NEMA 3R |
| Lens Color | Clear |
| Panel Cutout Dimension | 1.18 " |
| Ratings | AC, DC |
| Termination Style | Screw Terminal |
| Voltage (Max) | 28 V |
| Voltage (Min) | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
