Description

General part information

AMPLIMITE HDP Series

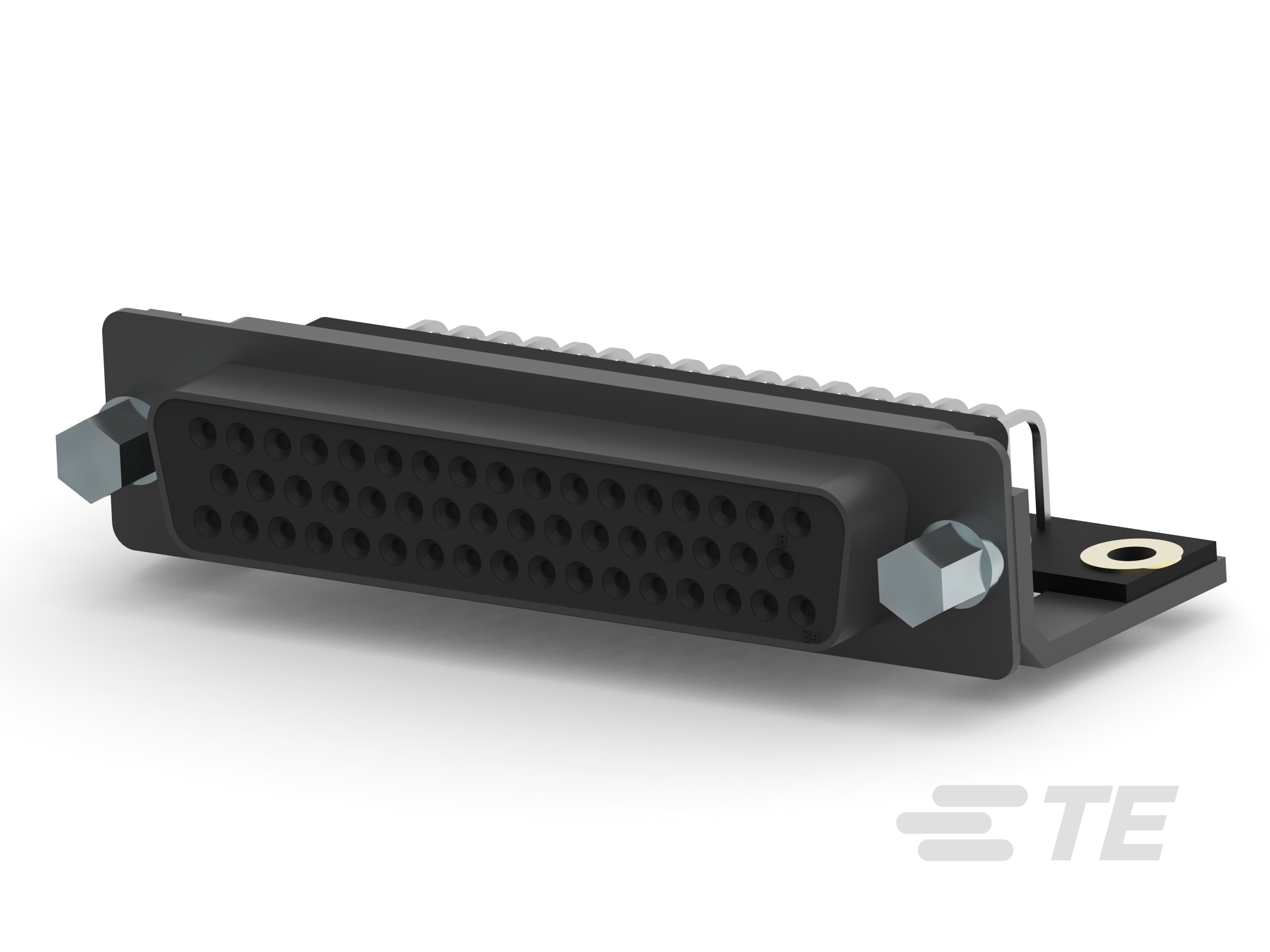

50 Position D-Shaped Connector, Receptacle, Board-to-Board, Board Mount, 5 Shell Size, 2.77 mm [.109 in] Centerline, AMPLIMITE HDP

Technical Specifications

Parameters and characteristics for this part

Specification5747193-2
Backset Spacing0.545 in
ColorBlack
Connector LayoutD, DD
Connector StyleD-Sub
Connector TypeReceptacle, Female Sockets
Contact FinishGold
Contact MaterialPhosphor Bronze
Contact TypeSignal
Current Rating6 A
Dielectric MaterialGlass Filled, Polyamide (PA), Nylon
FeaturesMounting Brackets
FinishTin Plated
Flange FeatureFemale Screwlock (4-40), Mating Side
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole, Right Angle
Number of Positions50
Number of Rows3
Operating Temperature (Max)105 °C
Operating Temperature (Min)-55 °C
Shell MaterialSteel
Shell Size5
TerminationSolder
Voltage Rating125 V
