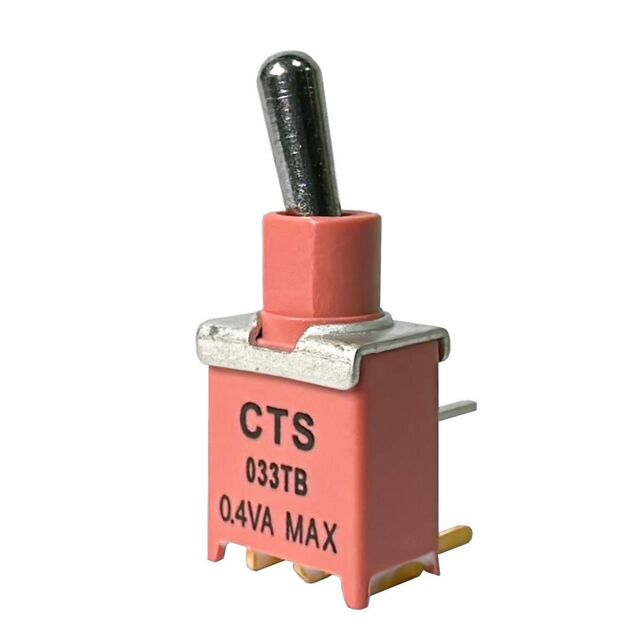

Specification	033TBHSATB

Actuator Length	6.1 mm
Actuator Type	Standard Round
Bushing Thread	Unthreaded
Circuit	SPDT
Current Rating	0.4 VA
Electrical Life (Cycles)	30000 Cycles
Illumination	Non-Illuminated
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Mounting Type	Through Hole, Right Angle
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-30 °C
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	20 V
Voltage Rating - DC	20 V
