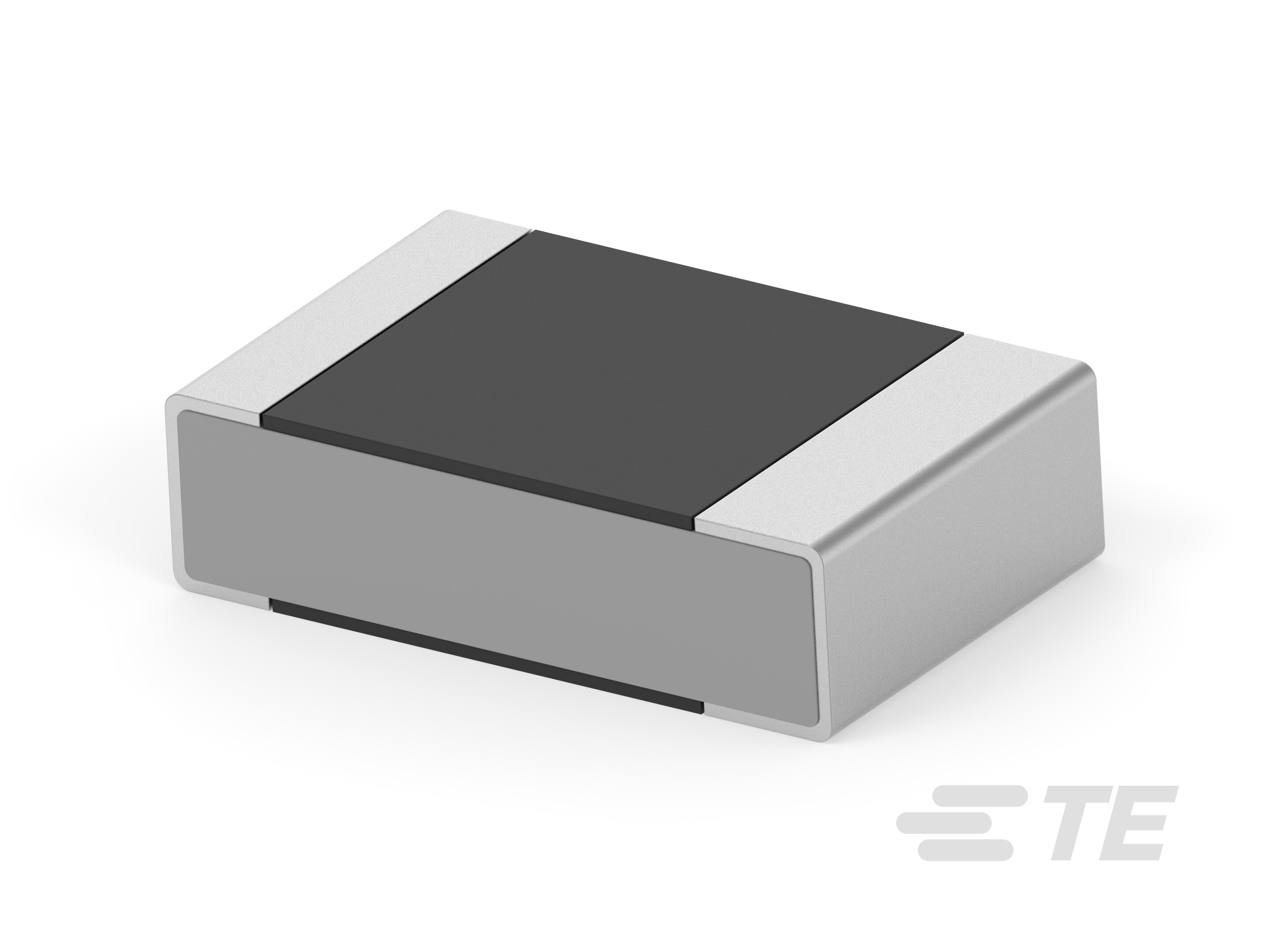

Specification	RU73X2A75RLTDF

Composition	Thin Film
Height - Seated (Max)	0.026 in
Number of Terminations	2
Operating Temperature (Max)	155 °C
Operating Temperature (Min)	-55 °C
Package / Case	0805 (2012 Metric)
Package Name	0805
Power (Watts)	100 mW
Power (Watts) Options	1/10W
Resistance	75 Ohm
Size / Dimension Length	0.079 in
Size / Dimension Width	0.049 in
Temperature Coefficient	2 ppm/°C
Tolerance	0.01 %

RU73X2A Series

...

Part	Height - Seated (Max)	Composition	Number of Terminations	Resistance	Operating Temperature (Max)	Operating Temperature (Min)	Power (Watts)	Power (Watts) Options	Package / Case	Package Name	Tolerance	Temperature Coefficient	Size / Dimension Length	Size / Dimension Width
TE Connectivity AMP Connectors RU73X2A14KLTDF	0.026 in	Thin Film	2	14 kOhm	155 °C	-55 °C	100 mW	1/10W	0805 (2012 Metric)	0805	0.01 %	2 ppm/°C	0.079 in	0.049 in
TE Connectivity AMP Connectors RU73X2A3K48LTDF	0.026 in	Thin Film	2	3.48 kOhm	155 °C	-55 °C	100 mW	1/10W	0805 (2012 Metric)	0805	0.01 %	2 ppm/°C	0.079 in	0.049 in
TE Connectivity AMP Connectors RU73X2A169RLTDF	0.026 in	Thin Film	2	169 Ohm	155 °C	-55 °C	100 mW	1/10W	0805 (2012 Metric)	0805	0.01 %	2 ppm/°C	0.079 in	0.049 in
TE Connectivity AMP Connectors RU73X2A887RLTDF	0.026 in	Thin Film	2	887 Ohm	155 °C	-55 °C	100 mW	1/10W	0805 (2012 Metric)	0805	0.01 %	2 ppm/°C	0.079 in	0.049 in
TE Connectivity AMP Connectors RU73X2A2K05LTDF	0.026 in	Thin Film	2	2.05 kOhm	155 °C	-55 °C	100 mW	1/10W	0805 (2012 Metric)	0805	0.01 %	2 ppm/°C	0.079 in	0.049 in
TE Connectivity AMP Connectors RU73X2A787RLTDF	0.026 in	Thin Film	2	787 Ohm	155 °C	-55 °C	100 mW	1/10W	0805 (2012 Metric)	0805	0.01 %	2 ppm/°C	0.079 in	0.049 in
TE Connectivity AMP Connectors RU73X2A3K74LTDF	0.026 in	Thin Film	2	3.74 kOhm	155 °C	-55 °C	100 mW	1/10W	0805 (2012 Metric)	0805	0.01 %	2 ppm/°C	0.079 in	0.049 in
TE Connectivity AMP Connectors RU73X2A187RLTDF	0.026 in	Thin Film	2	187 Ohm	155 °C	-55 °C	100 mW	1/10W	0805 (2012 Metric)	0805	0.01 %	2 ppm/°C	0.079 in	0.049 in
TE Connectivity AMP Connectors RU73X2A178RLTDF	0.026 in	Thin Film	2	178 Ohm	155 °C	-55 °C	100 mW	1/10W	0805 (2012 Metric)	0805	0.01 %	2 ppm/°C	0.079 in	0.049 in
TE Connectivity AMP Connectors RU73X2A14K7LTDF	0.026 in	Thin Film	2	14.7 kOhm	155 °C	-55 °C	100 mW	1/10W	0805 (2012 Metric)	0805	0.01 %	2 ppm/°C	0.079 in	0.049 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Thin film chip resistor RU73 series

ENG_CD_2176270_BA.pdf

Datasheet
