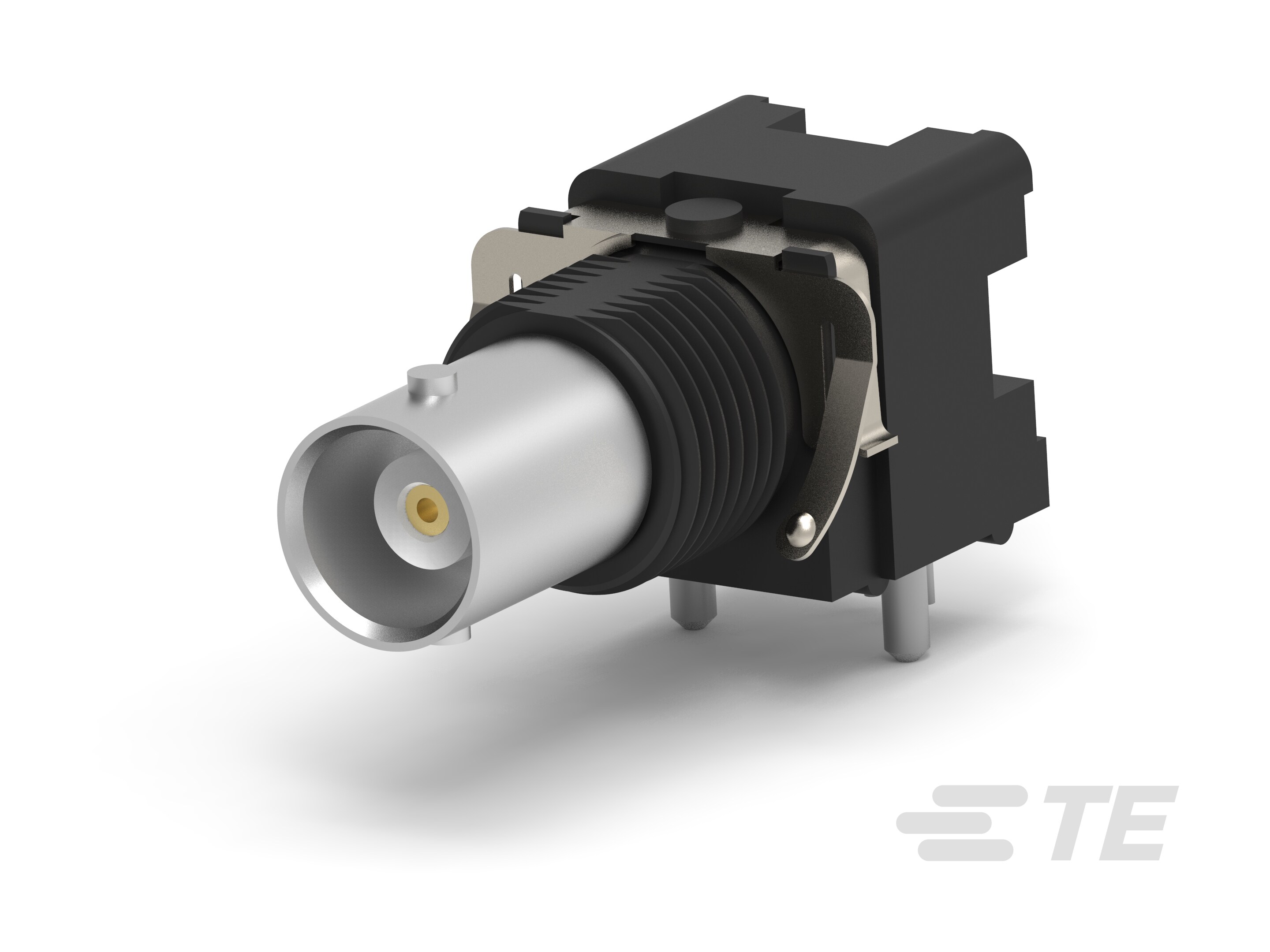

413524-5
ActiveTE Connectivity AMP Connectors
CONN DECOUPLED BNC 0HZ TO 1GHZ 50OHM SOLDER RA THRU-HOLE RCP GOLD OVER NICKEL TUBE
413524-5
ActiveTE Connectivity AMP Connectors
CONN DECOUPLED BNC 0HZ TO 1GHZ 50OHM SOLDER RA THRU-HOLE RCP GOLD OVER NICKEL TUBE
Description
General part information
413524-5
BNC Connector, Jack, 50 ohm, Bayonet, 1 GHz, Cable-to-Board, 1 Position, Printed Circuit Board, Panel Mount, -55 – 85 °C [-67 – 185 °F], Zinc, Nickel
Technical Specifications
Parameters and characteristics for this part
| Specification | 413524-5 |
|---|---|
| Center Contact Material | Phosphor Bronze |
| Connector Style | BNC |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder |
| Fastening Type | Bayonet Lock |
| Features | Filter, Isolated, Board Lock |
| Frequency - Max | 4 GHz |
| Housing Color | Black, Silver |
| Impedance | 50 Ohm |
| Mounting Feature | Bulkhead, Front Side Nut |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Number of Ports | 1 |
| Shield Termination | Solder |
