KBS-27DB-3A
ObsoleteKYOCERA AVX

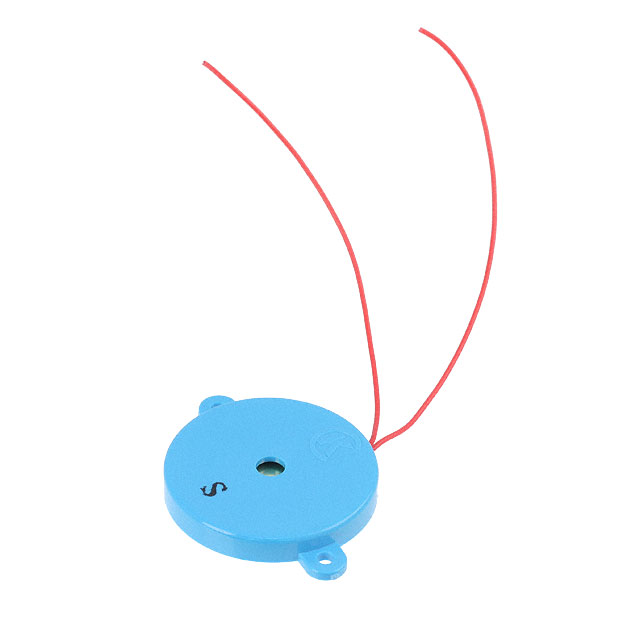

BUZZER PIEZO 10V 30.00MM FLANGE
KBS-27DB-3A
ObsoleteKYOCERA AVX
BUZZER PIEZO 10V 30.00MM FLANGE
Description
General part information
KBS-27DB-3A
Buzzers Transducer, Externally Driven Piezo 10 V 3kHz 75dB @ 10V, 30cm Panel Mount, Flange Wire Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | KBS-27DB-3A |
|---|---|
| Driver Circuitry | Externally Driven, Transducer |
| Frequency | 3 kHz |
| Height - Seated (Max) | 0.185 in |
| Input Type | Peak-Peak Signal |
| Mounting Type | Panel Mount, Flange |
| Operating Mode | Single Tone |
| Port Location | Top |
| Size / Dimension Diameter | 1.181 in |
| Sound Pressure Level (SPL) | 75 dB |
| Technology | Piezo |
| Termination | Wire Leads |
| Voltage - Rated | 10 V |
