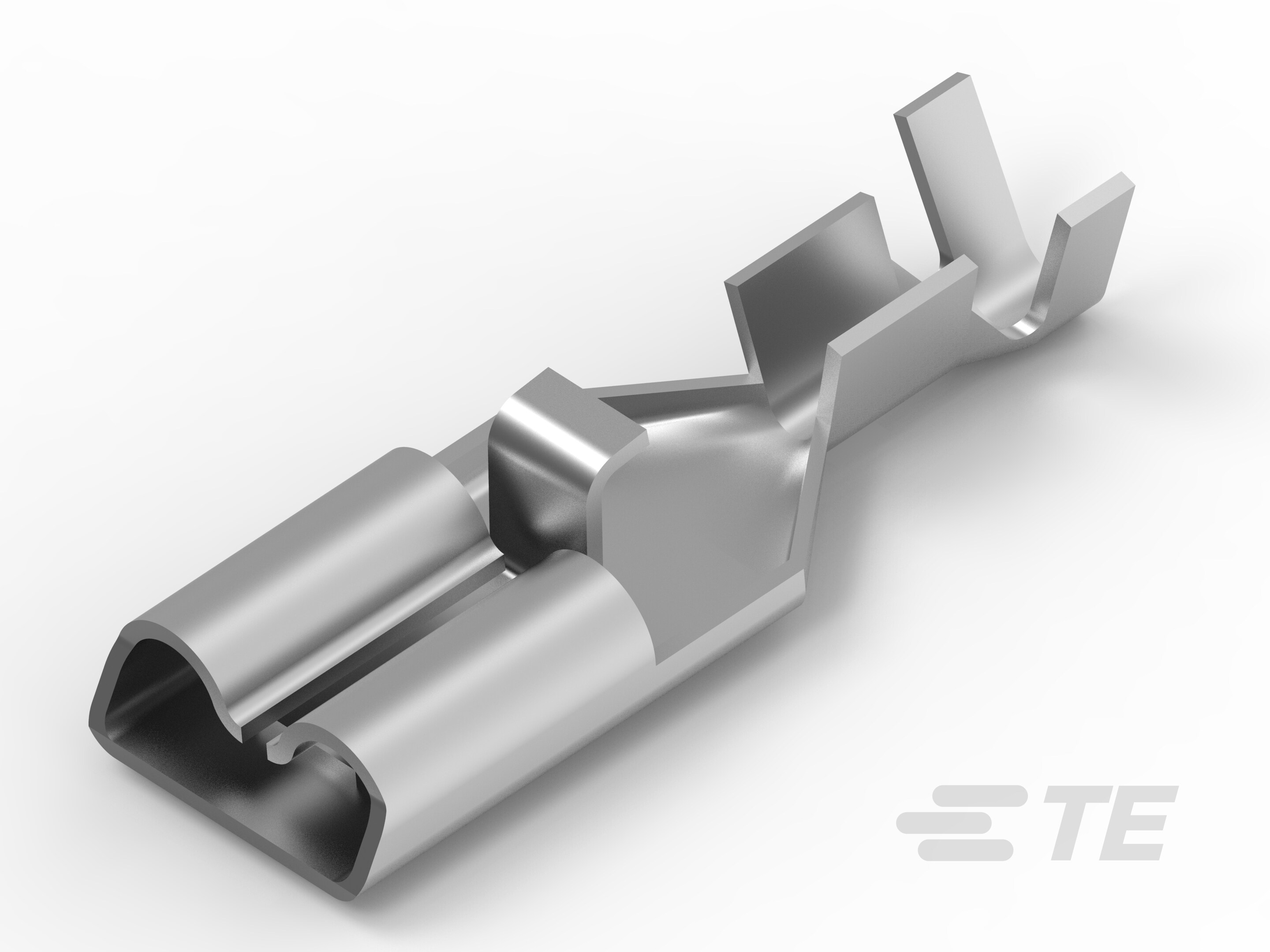

190679-2
ActiveTE Connectivity AMP Connectors
CONN QC RCPT 15-20AWG 0.250
190679-2
ActiveTE Connectivity AMP Connectors
CONN QC RCPT 15-20AWG 0.250
Description
General part information
Positive Lock 250 Series
Quick Disconnect Receptacle, 20 – 15 AWG, .51 – 1.65 mm² Wire, Straight, Brass, Pre-Tin Plating, Strip/Reel, F-Crimp, Open Barrel, Positive Lock 250
Technical Specifications
Parameters and characteristics for this part
| Specification | 190679-2 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Gender | Female |
| Insulation | Non-Insulated |
| Length - Overall | 0.854 in |
| Mounting Type | Free Hanging (In-Line) |
| Tab Thickness | 0.016 in |
| Tab Width | 0.25 in |
| Terminal Type | Standard |
| Termination | Crimp |
| Wire Gauge (AWG) (Max) | 20.5 AWG |
| Wire Gauge (AWG) (Min) | 15 AWG |
